FLEXIBLE ROGOWSKI COIL 6000A SET

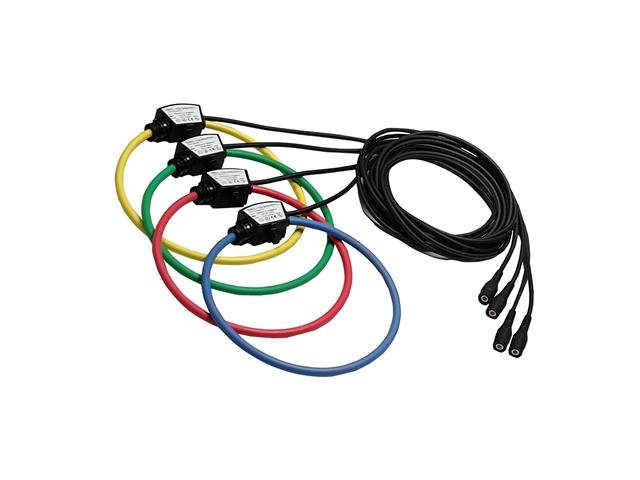

6000A Rogowski Coil for use with ME435, ME440 and MI550 Energy Analyzers. 200mm Diameter. 2m Cable Length: 4 Coils Per Set

SKU: FLEXIBLE ROGOWSKI COIL 6000A SET

BRAND: Meatrol


In Stock
R 6,100.00 (inc VAT)
R 5,304.35 (ex VAT)

Or split into 4x interest-free
payments of R1326.08 Learn more

Collections: Test & Measurement, Test & Measurement - Data Acquisition & Logging

Type: Data Acquisition & Logging

Category: Datalogger

6000A Rogowski Coil

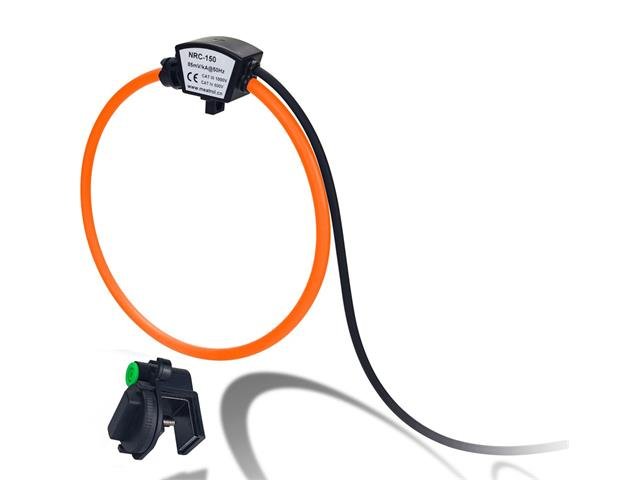

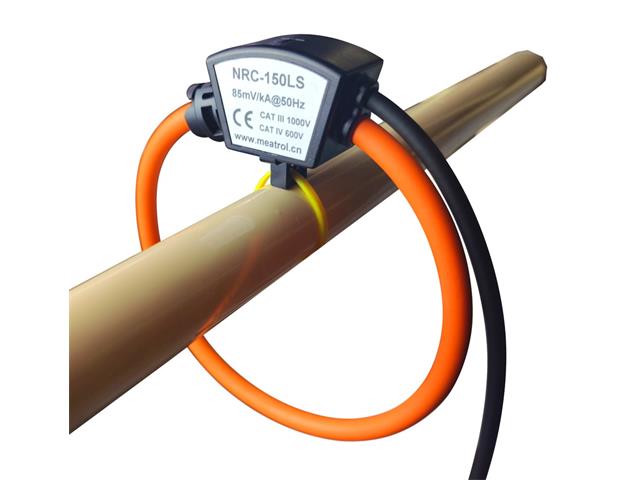

The NRC series is a new generation of flexible Rogowski coil (Rogowski® coil) current sensors, which are especially suitable for measuring in combination with portable devices. NRC coils have different sizes to cope with different conductors. The new generation of NRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators.

Advantage

  • Excellent linearity
  • Wide dynamic range
  • Not damaged by large overloads
  • Excellent degree of rejection to the external current conductor
  • No danger from open-circuited secondary
  • Zero power consumption
  • Small position error
  • Soft and light, easy to install
  • Long-term stability
  • Wide dynamic range
  • IP68 protection level

Applications

  • Smart meter
  • Rectifier current measurement
  • Power quality analysis
  • Motor overload/short circuit protection
  • Current monitoring of power frequency and intermediate frequency welding machine
  • Medium and high voltage switchgear protection system
  • Remote Terminal Unit (RTU)
  • Synchronous Phasor Measurement Unit (PMU)
  • Current measurement on the secondary side of the electric furnace
  • Window size : 200mm-Section :8mm
  • Rated input : 6000A
  • Cable length : 2 meter
  • Calibrated Accuracy : ±0.5%(temperature drift:300ppm/C)
  • Ratio : 85mV/kA@50Hz
  • linearity : 0.2%(from 1% to 100% of rated )
  • Position error : ±1%
Device Coil
Type 6000A | Rogowski
