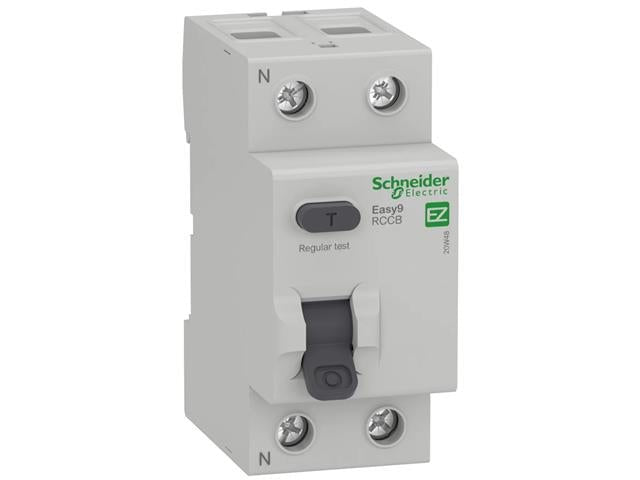

SKU: EZ9R03263
BRAND: Schneider
In Stock
R 362.25 (inc VAT)
R 315.00 (ex VAT)
Shop Online
and fill your cart
Choose Payflex at checkout
Get approved and
pay 25% today
with your debit
or credit card
Pay the remainder
over 6-weeks.
No interest.
No fees.
| Range of product | Easy9 |
|---|---|
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | Easy9 RCCB |
| Poles | 2P |
| Neutral position | Left |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | 500 A |
| Rated conditional short-circuit current | Easy9 MCB: 3000 A 63 A |
| Device location in system | Outgoer |
|---|---|
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| residual current tripping technology | Voltage dependent |
| [Ui] rated insulation voltage | 440 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Contact position indicator | Yes |
| control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Connection pitch | 18 mm between phases |
| 9 mm pitches | 4 |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 72 mm |
| Net weight | 125 g |
| Colour | Grey (RAL 7035) |
| Mechanical durability | 5000 cycles |
| Electrical durability | AC: 2000 cycles 230 V AC 50 Hz |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Wire stripping length | 16 mm |
| Tightening torque | 3.5 N.m top or bottom |
| Standards | SANS 767 IEC 61008-1 |
|---|---|
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to IEC 61008-1 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Device | Circuit Breaker |
| Type | Easy9 | Earth Leakage | Current |
