Main

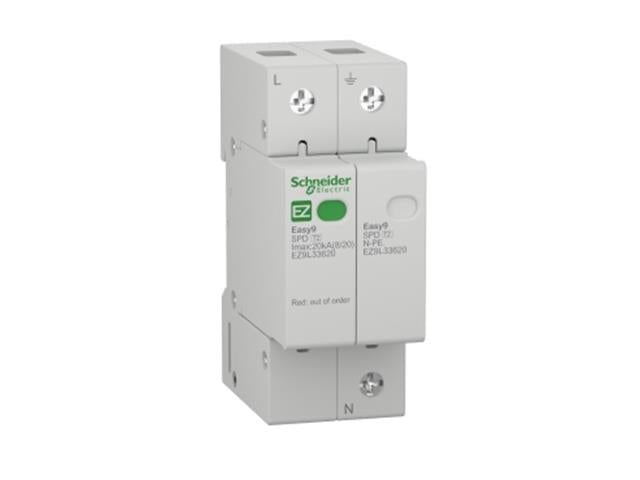

• Range of product : Easy9
• Product or component type : Surge arrester
• Device short name : Easy9 SPD
• Poles : 1P + N
• Remote signaling : Without
• Surge arrester type : Electrical distribution network
• Earthing system TT, TN-S
• Disconnector device type : Associated circuit breaker at 230 V

Complementary

• Surge arrester class type : Type 2
• Surge arrester technology : MOV + GDT
• Nominal discharge current
  • Common mode: 10 kA (N/PE)
  • Common mode: 10 kA (L/N)
• Maximum discharge current
  • Differential mode: 20 kA L/N
  • Differential mode: 20 kA N/PE
• [Uc] maximum continuous operating voltage
  • Differential mode: 275 V L/N
  • Differential mode: 275 V N/PE
• Maximum [Up] voltage protection level : Differential mode <1.3 kV type 2 L/N
• Local signaling : Green and red flag
• Mounting mode : Clip-on
• Mounting support : DIN rail
• 9 mm pitches : 4
• Height : 90 mm
• Width : 36 mm
• Depth : 66.2 mm
• Colour : Grey (RAL 7035)
• Response time : <= 25 ns
