ET GARAGE MOTOR DCBLU-KIT AST-S

Name: ET GARAGE MOTOR DCBLU-KIT AST-S - Communica [Part No: ET GARAGE MOTOR DCBLU-KIT AST-S]
Brand: Et
SKU: ET GARAGE MOTOR DCBLU-KIT AST-S
Price: 2130.44 ZAR
Availability: InStock

SKU: ET GARAGE MOTOR DCBLU-KIT AST-S

BRAND: Et

In Stock
R 2,450.01_{(inc VAT)}
R 2,130.44_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Garage Door Motors Accessories

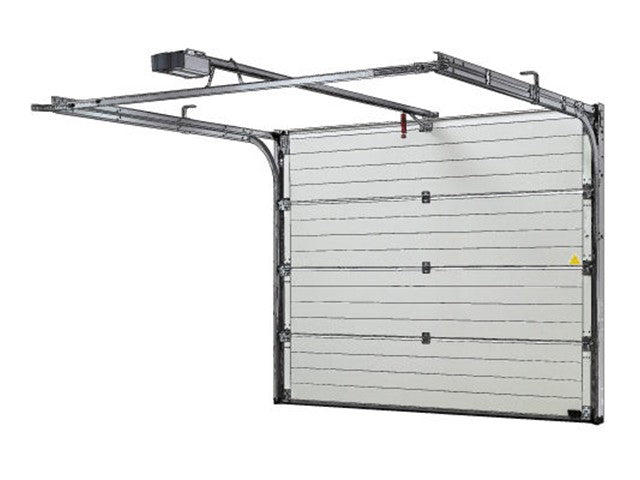

ET Garage Door Motor DC Blue ASTUTE Sectional - Kit (2xTX4 Remotes, 24VDC DC Blue ASTUTE Head Unit- Built-In Lithium Battery 24V1.5AH (Battery Dependent) 20 Cycles Per 24HRS (Max 5 Cycles Per Hour), 3.2m Drawbar Only, I/P:85-264VAC, {03513-000}

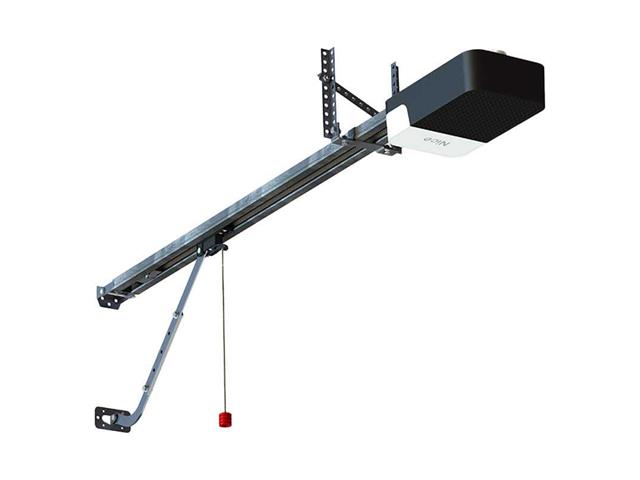

DC Blue ASTUTE Sectional Garage Door Motor

Features

Super-charger + lithium battery = a powerful package!

The Li-lon battery is pre-installed in the motor-head housing. (Saves installation time.)
The charger manages lithium and SLA batteries.
Lithium-ready high-speed charger. Fully charges our standard lithium battery in 1,4 hours. It charges as quickly as a fast-charging mobile phone!
Lithium battery backup ensures extra Nice reliability.
Battery and charger features:
Battery Management System is built-in.
- Low voltage cut-off.
- Over voltage cut-off.
- Short circuit cut-off.
- Safe operating temperature control.
- High speed battery recovery. The door can be operated within 10 minutes of charging from fully depleted depth-of-discharge, when using the Nice Li-lon battery.
- Works with LiFeP04, Li-lon, ACM, GEL and Crystal Sealed Lead-Acid (SLA) batteries.
- More than enough battery reserve for either 48 hours of standby or 70 open/close cycles, whichever comes first. (A typical single-family home uses fewer than 10 open/close cycles per day.)
Wide range mains power input voltage (85 — 264 VAC) and frequency (47 - 63 Hz), so the motor is perfectly suited to inverter-generated power.
Quicker installation with improved fastener kit and internal battery (no need to mount external battery).
Same drawbar and setup methodology as other DC Blue Tip-up and Sectional Door Operators.

Long-term high performance - that's the real beauty of it

Nice and quiet operation with the trusted strong DC Blue belt drawbar.
Smart safety beam circuit that monitors for open circuit and short-circuiting cable faults. Troubleshooting and status reports are indicated both visually and audibly. - Indications are now only given when the user triggers the door.
See and hear warnings when:
- Household mains are interrupted.
- The battery charge level is low.
- The door is obstructed.
- The door needs to be balanced or service is required.
- Lock-out is enabled.
- The safety beam trigger is preventing door from closing.
- The door travel limits setup has not been completed correctly

Specifications

Technical specification	DC BLUE ASTUTE
Applicable door types	Sectional overhead and trackless tip-up doors
Applicable door sizes	<15 m²
Primary power supply	85 - 264 VAC @ 47-63
Rated primary power consumption	< 36 W
Motor voltage	24V DC
Maximum operations per day	<20 full cycles per 24 hours @ Max. 5 cycles per hour
Rated auxiliary output	< A @ 12 VDC
Rated battery charging voltage	28,8 VDC
Battery type compatibility	LiFeP04, SLA ACM, SLA GEL and SLA CRYSTAL
Number of operations on battery reserve without AC present	< 70 cycles (From a fully charged and healthy 1,5 Ah Li-lon battery)*
Drawbar options (Ex-stock)	2,2 m or 3,2 m or m
Maximum running distance
Traveller speed*	8 m/min
Maximum load prior to anti-crush safety sensing/governing. (Force)	1 000 N
Anti-crushing safety sensing/governing	Yes - As per IEC SANS Safety Regulations
Safety beam input	Yes - Smart EOL monitored
Receiver format	ET BLU MIX O backward compatible with ET BLUE O - Rolling code
Receiver frequency	433,92 MHz
Receiver functions	BT: Open/close door, LT: Switch courtesy light on/off, Lock-out enable/disable.
Receiver memory capacity	35 users
All users can be allowed control of all channels	Yes
Ingress protection	IP20
Operating temperature range	O to 45 ^oc (32 ^OF to 113 ^OF)

Downloads

Datasheet - ET GARAGE MOTOR DCBLU-KIT AST-S

Additional Information

Device	Garage Door Motor
Type	DC Blue \| ASTUTE Sectional
