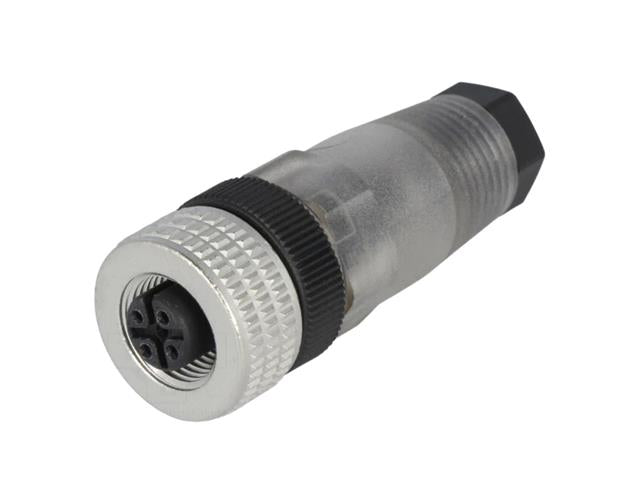

ELKA4012KPG7

Straight 4-pole female M12 connector with strain relief by cage clamp, 4.0 to 6.0 mm (PG7), suitable for 250V/4A, IP 67, plastic housing (PA), -25 to +90 °C. Transparent housing for mounting LED type E 2 LED PNP

PRODUCT DESCRIPTION:
Description: Straight cable socket, unassembled,
strain relief by means of clamping cage,
electronic insert (LED display) may be fitted.
Type: ELKA 4012 PG7 transparent/topas
Type of Contact: Female
Number of Contacts: 4
Cable Gland: PG 7
Standard: IEC 61076-2-101 (Ed. 1)/ IEC 60947-5-2
Housing Color: Transparent

TECHNICAL DATA:
Rated Voltage: AC/DC 250 V
Rated Current: 4 A
Type of Termination: screw
Suitable Cables: Diameter 4 mm to 6 mm, max. 0.75 mm2

MATERIAL:
Contact Material: Cu Zn
Contact Surface Material: Sn
Contact Bearer Material: PA
Housing Material: PA
Coupling Nut Material: Zn Al/Ni
O-Ring: NBR

ENVIRONMENTAL CONDITIONS:
Protection Class (IEC 60529): IP 67
Pollution Severity: 3
Temperature Range: -25 °C to +90 °C

INFLAMMABILITY CLASS:
Housing: 94 V-2
Contact Bearer: 94 V-2
