DGU MINI DRIVER ROBOT CONTROLLER
RS027 Arduino Mini Motor Driver Control Board

SKU: DGU MINI DRIVER ROBOT CONTROLLER

BRAND: Dagu


Sold Out

Or split into 4x interest-free
payments of R42.54 Learn more

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Motor Drivers, Robot Controllers

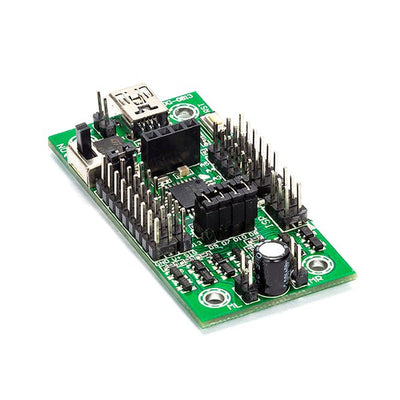

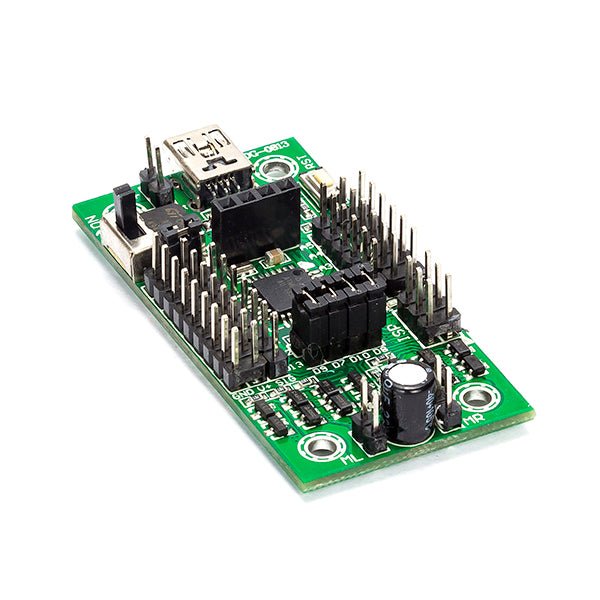

  • The DAGU Mini-Driver control board is an Arduino based miniature control board with a number of add-ons making it ideal for embedded projects, Beginners and Educators
  • The controller includes an ATMEGA8 (5V @ 16Mhz) with Arduino boot loader, Dual Channel DC motor controller (up to 2.5Amps per channel) and can drive up to 8 Servos
  • Some additional features are also in place including Battery Level monitoring, a wide range of power input (5-9V) and a master On-Off switch for your project
  • This controller is used in DAGU's DoodleBot and is a simplified version of the Micro Magician, offering a lower cost, feature rich solution for small and embedded projects
  • We also have some new metal geared motors with a shaft extending out the back so our encoder kit can be fitted to the motors
  • The robot uses our Mini Driver as a low cost "smart" motor driver that monititors the encoder to control the motor speed

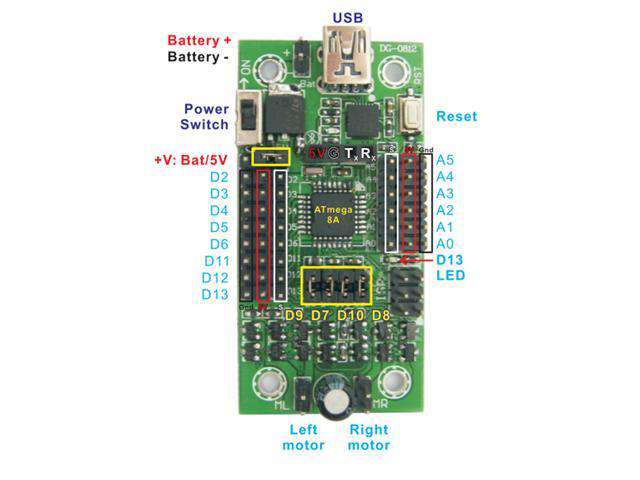

  • ATMEGA8 5V @ 16Mhz with Arduino boot loader (Select "Arduino NG or older with ATMEGA8" in the Arduino IDE)
  • Onboard 5V regulator
  • Power supply voltage: 5~9V
  • Dual Channel DC Motor Driver up to 2A per channel
  • Supports up to 8 Servos
  • SMD version of ATMEGA8: two extra Analog pins are available (A6, A7):
  • Battery Level monitoring available on pin A7
  • A6 is accessible through a solder pad in the back if needed
  • Built in LED connected to D13
  • Compatible with the DAGU Bluetooth Module (available separately)
