DGU MICRO MAGICIAN CONT BOARD V2
RS019 Micro "Magician" V2 Robot Controller Arduino Compatible

SKU: DGU MICRO MAGICIAN CONT BOARD V2

BRAND: Dagu


In Stock
R 485.22 (inc VAT)
R 421.93 (ex VAT)

Or split into 4x interest-free
payments of R105.48 Learn more

Collections: Robotics

Type: Robot Controllers

Category: Robot Controllers

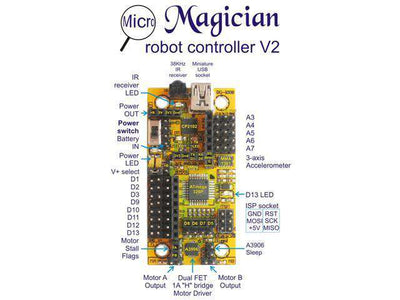

  • The Micro Magician V2 is the perfect controller for small robots
  • At just 30mm x 60mm this board is less than half the size of a standard Arduino board but is packed full of featured needed for making a small robot
  • The V2 controller is fully software compatible with the new Arduino 1.0 IDE and code can be loaded using either the ISP interface or USB
  • Compatible with the Arduino IDE - board type: Arduino Pro or Arduino Pro Mini (3.3V, 8MHz) w/ ATmega328
  • ATmega328P processor running at 8MHz, 3.3V with 32K FLASH, 1K EEPROM and 2K SRAM
  • Input voltage from 3.6V to 9V
  • Built in LDO +5V, 1A regulator (input voltage must be at least 5.5V) to power external 5V devices
  • Built in LDO +3.3V, 500mA regulator
  • Reverse polarity protection rated at 6A for protecting servos and motor driver IC
  • Reverse polarity protection rated at 3A for logic and other 3.3V devices
  • Built in USB using the CP2102 interface IC
  • Built in dual FET "H" bridge with current limiting, motor stall detection and electronic braking
  • Built in 3-axis accelerometer with 0G detection and selectable ±1.5G and ±6G ranges
  • Built in 38KHz IR receiver providing 128 virtual buttons when using the Sony IR protocol
  • 8x digital I/O pins terminated with 3 pin male header and selectable supply voltage for logic / driving servos
  • 3 pin male headers on analog inputs to provide 3.3V power for sensors
  • 4 pin female communications header for 3.3V wireless transceivers (Xbee or Bluetooth)
  • ISP socket for bypassing the bootloader and programming the processor directly
  • Power, Rx, Tx, D13 and IR signal indication LEDs
  • Software library provides functions for IR decoding, angle / impact detection, motor control
