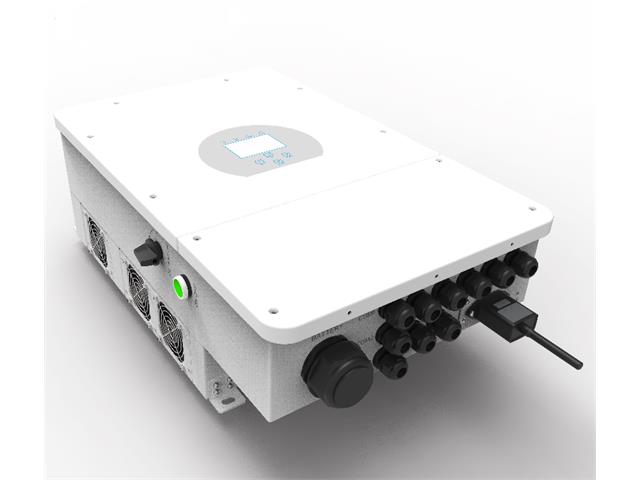

DEYE 8K-SG01LP1-EU
DEYE Hybrid Inverter 8KW Battery Voltage :40~60V, Max Charge/discharge Current 190A,PV Input Voltage:500V, Self-Adapton to BMS, Max DC I/P PWR:10400W, MPPT Trackers 2, MAX DC I/P PWR:10400W, 50Hz 230VAC (Single Phase), RS485, CAN, 670x420x233mm, 32kg, IP6

Name: DEYE 8K-SG01LP1-EU - Communica [Part No: DEYE 8K-SG01LP1-EU]
Brand: Deye
SKU: DEYE 8K-SG01LP1-EU
Price: 38400 ZAR
Availability: InStock

SKU: DEYE 8K-SG01LP1-EU

BRAND: Deye

In Stock
R 44,160.00_{(inc VAT)}
R 38,400.00_{(ex VAT)}

Or split into 4x interest-free
payments Learn more

Collections: Loadshedding, Power

Type: Power Inverters

Category: Hybrid Inverter, Loadshedding

Hybrid Inverter 8KW Battery

Feature

Higher Yields

Improve self-consumption ratio up to 80%, reducing your electricity bill
DC/AC ra ratio up to 1.3, completely suitable for double-side PV modular
Two MPPT design, Max. efficiency of 97.6%

User-friendly

LCD Touch screen and buttons, easy operation
Compable with lithium-ion battery and lead acid battery
Web browser and mobile App monitoring supported

Reliable

PV lighting protection, Anti-islanding protection, Leakage current protection etc
Support store energy from DG when needed, ensure the system working within 7*24H
IP65 protection degree, adapt to indoor and outdoor
Automatically switch from on-grid to off-grid mode within 5ms
Zero exporting function, fast reaction within 200ms in zero export mode

Smart

Programmable charging and discharging schedule
Both wind turbines and solar panels can be connected as DC input power
Max. 16 units can be paralleled for higher system power
Retrofitting of existing solar system to energy storage system

Specifications

Battery Input Data

r Li- lean
Battery Voltage Range (V) 40~60V
Max Charging Current (A) 190A
Max Discharging Current (A) 190A
Charging Curve 3 Stages/Equalization
Extreme Temperature Sensor Included
Charging Strategy for Li- Ion Battery Self- adaption to BMS

PV String Input Data

Max DC Input Power (W) 10400W
PV Input Voltage (V) 370V(lO0V~500V)
MPPT Range (V) 125V-425V
Start - up Voltage (V) 125V
PV Input Current (A) 1SA+18A
Nc1.ofMPPT Trackers 2
No of Strings Per MPPT Tracker 2+2

AC Output Data

Rated AC Output and UPS Power (W) 8000W
Max AC Output Power (W) 8800W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current(A) 33.4A/35A
Max.AC Current(A) 38.3A/40A
Max Continuous AC Passthrough(A) 50A
Output Frequency and Voltage 50Hz- 230Vac (single phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)

Efficiency

Max Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%

Protection

PV Arc Fault Detection integrated (Except European Type)
PV input Lightning Protection Integrated
Anti - islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detect ion Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated

Certifications and Standards

Grid Regulation AS4777, N RS2017, G98, G99, IEC61683, IEC62 116, IEC6 1727
Safety Regulation IEC62109 - l, IEC6210 9-2
EMC EN61000 -6- l, EN61000 -6-3

General Data

Operating Temperature Range (c) -25- 60 t, >45 °C. Derating
Cc>c>ling Fan
Noise (dB) <30
Communication with BMS RS485; CAN
Weight (kg) 32
Size (Length x Width x Height mm) 670 X 420 X 233mm
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years

Downloads

Datasheet - DEYE 8K-SG01LP1-EU

Additional Information

Device	Inverter
Type	Hybrid \| 8KW Battery
