CMU RAMPS 1.5 MEGA SHIELD
The Ramps 1.5 Arduino Shield has been designed for REPRAP and PRUSA 3D Printers. A Neat and Tidy Little Package Filled to the BRIM with Functionality, and allows a simple Arduino MEGA Board to Control up to 4 Different Stepper Motor Drivers Simultaneously

Name: CMU RAMPS 1.5 MEGA SHIELD - Communica [Part No: CMU RAMPS 1.5 MEGA SHIELD]
Brand: Communica
SKU: CMU RAMPS 1.5 MEGA SHIELD
Price: 158.26 ZAR
Availability: OutOfStock

SKU: CMU RAMPS 1.5 MEGA SHIELD

BRAND: Communica

Sold Out
R 182.00_{(inc VAT)}
R 158.26_{(ex VAT)}

Collections: 3D Printing & Accessories

Type: 3D & CNC Controllers & Shields

Category: Ramps 1.5 Controller Expanding Board

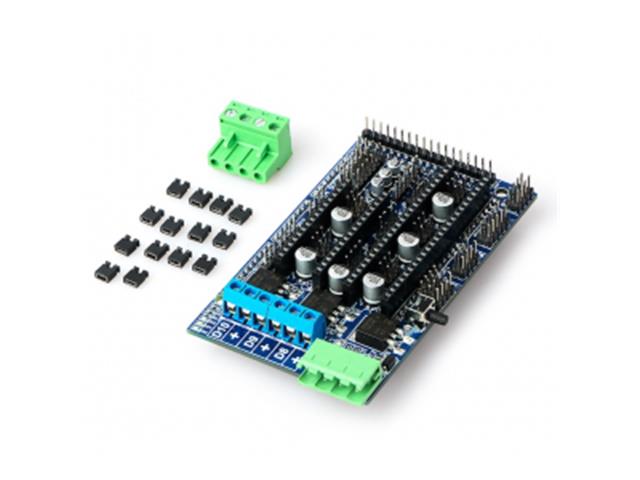

Ramps 1.5 Controller Expanding Board

Features

Optimized and upgraded based on RAMPS1.4
Patch-type MOS tube, solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation.
Can be extended to LCD and other parts.
Design of Pololu plate pin socket can be easily replaced or removed for future design.
Applied to 5 Pololu stepper drive board.

Other Characteristics:

There are heater and fan MOSFET outputs and 3 thermistor interfaces.
5A additional security and component protection fusion.
Heated bed controls additional 11A fuses.
I2C and SPI pins are available for future expansion.
Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
- These connectors are gold-plated and have a rated current of 3A, which is very compact.
The LED will light when the heater has output.
Support 2 motors to connect to Z Prusa Mendel

Specifications

Type: Ramps 1.5 Controller Expanding Board
Suitable for: Reprap 3D Printer
Item Size: 10.2 * 6 * 1.5cm / 4.0 * 2.4 * 0.6in
Item Weight: 56g / 2.0oz
Package Size: 14.8 * 10.2 * 3.8cm / 5.8 * 4.0 * 1.5in
Package Weight: 38g / 1.3oz

Note:

Don’t connect the live board or replace the module interface (except SD,USB)
Please press the RESET button or turn off button when emergency.

Package List:

1 * Ramps 1.5 Controller

Additional Information

Device	Expanding Board
Type	Ramps 1.5 \| Controller
