CMU ASAIR ORIG DHT22/AM2302 SENS

Name: CMU ASAIR ORIG DHT22/AM2302 SENS - Communica [Part No: CMU ASAIR ORIG DHT22/AM2302 SENS]
Brand: Communica
SKU: CMU ASAIR ORIG DHT22/AM2302 SENS
Price: 121.74 ZAR
Availability: InStock

SKU: CMU ASAIR ORIG DHT22/AM2302 SENS

BRAND: Communica

In Stock
R 140.00_{(inc VAT)}
R 121.74_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Temperature and Humidity Sensors

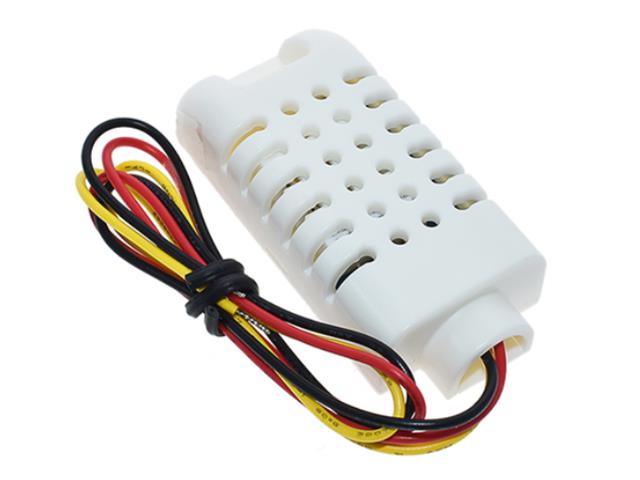

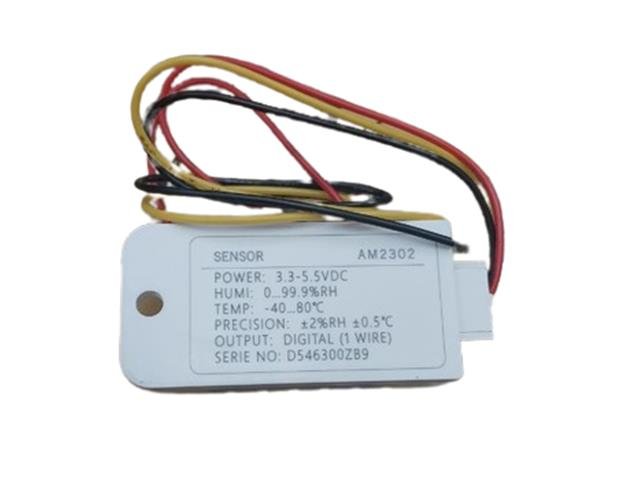

Original AM2302B (DHT22) Temperature and Humidity Sensor (Not on PCB)

Temperature and Humidity Sensor

Features

The AM2301 Humidity Capacitance Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with a calibrated digital signal output.
It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability.
Therefore, the product has the advantages of excellent quality, fast response, strong anti-interference ability and high cost performance.
Each sensor is calibrated in a precision humidity calibration chamber.
The calibration coefficients are stored in the OTP memory as a program, and these calibration coefficients are called internally during the processing of the detection signal.
The sensor consists of a capacitive sensing element and an NTC temperature measuring element connected to a high performance 8-bit microcontroller.
Communication with the microprocessor via a single bus requires only one line, 40 bits of data at a time, high first out. Small size, low power consumption, long communication distance, can be used in demanding applications.

Specifications

Supply voltage (Vin): DC3.3-5. 5V
Output signal: single bus digital signal
Display resolution: 0.1C or 0.1%RH
Temperature detection range: -40-80 C
Humidity detection range: 0-99. 9%RH
Humidity detection accuracy: ±2%RH
Temperature detection accuracy: ±0.5C
Acquisition cycle: 1/e(63%)<5s
Storage temperature range: o- -8oC
Storage humidity range: 95%RH or less (non-condensing)
Product weight: 15g.
Product shell material: PC plastic (high-strength mechanical properties, fatigue resistance, low creep, heat aging resistance, solvent resistance, excellent insulation properties)

Additional Information

Device	Sensor
Type	Temperature and Humidity
