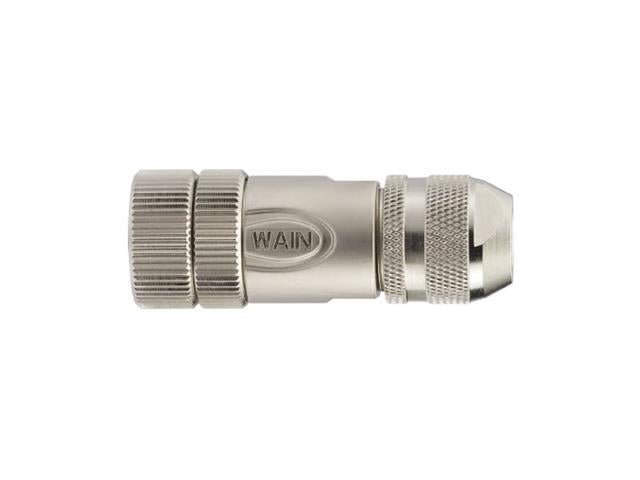

SKU: CM12DF4S-CW/9-SH
BRAND: Wain
In Stock
R 328.54 (inc VAT)
R 285.69 (ex VAT)
Collections: Connectors
Type: Circular Connectors
| Technical characteristics | |
| Number of contacts | 4 |
| Rated current (40℃) | 4A |
| Rated voltage | 250V |
| Rated impulse voltage | 2500V |
| Pollution degree | 3 |
| Overvoltage categorie | II |
| Contact resistance | ≤10mΩ |
| Connector locking system | screw M12x1 |
| Termination | screw |
| Wire gauge | max.0.75mm2(max.AWG18) |
| Cable outlet | 6-8mm |
| Degree of protection | IP67 |
| Mechanical operation | ＞100 |
| Limiting temperature | -40℃...+85℃ |
| Material group | II |
| Material of contact | copper alloy |
| Contact plating | Au |
| Insulating material | PA |
| Material of housing | zinc diecasting nickel plated |
| Device | Connector |
| Type | M12 | D COD | Cable | Circular |
