CIRCUIT BREAKER NGN120 - Circuit Breakers -

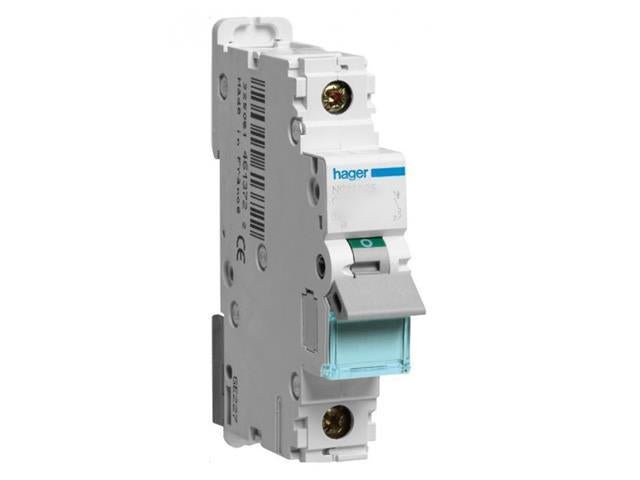

CIRCUIT BREAKER NGN120
Hager Circuit Breaker 1P 20A 10Ka (D-CURVE) MCB

SKU: CIRCUIT BREAKER NGN120

BRAND: Hager


In Stock
R 230.00 (inc VAT)
R 200.00 (ex VAT)

Or split into 4x interest-free
payments of R50 Learn more

Collections: Circuit Protection

Type: Circuit Breakers

Category: 1 Pole Circuit Breakers

Circuit Breaker 1P 20A

  • Breaking capacity : 6
  • Breaking capacity on 1 pole with 400 V NF 60947-2 : 3 kA
  • Class of energy limitation I2t : 3
  • Connection type (text) : With screw
  • Correction factor of magnetic tripping with 100 Hz : 1.1
  • Correction factor of magnetic tripping with 200 Hz : 1.2
  • Correction factor of magnetic tripping with 400 Hz : 1.5
  • Correction factor of magnetic tripping with 60 Hz : 1
  • Curve : D
  • Degree of pollution according to IEC 60664 / IEC 60947-2 : 2
  • Depth of installed product : 70 mm
  • Device family : NGN
  • Electric endurance in number of cycles : 10000
  • Frequency : 50/60 Hz
  • Hager installation time : 90 s
  • Hager wiring time : 225 s
  • Height of installed product : 83 mm
  • Installation time : 90 s
  • Is the MCB with disconnected neutral ? : no
  • Magnetic regulating currrent at 40° C : 10 IN; 14.4 IN
  • Maximum downstream fuse rating aM for selectivity on DC : 4 A
  • Maximum downstream fuse rating gL for selectivity on DC : 12 A
  • min/maxi threshold value of the AC thermal operation : 1.13 IN; 1.45 IN
Device Circuit Breaker
Type 1P | 20A
