CEN RDO0003

Name: CEN RDO0003 - Communica [Part No: CEN RDO0003]
Brand: Centurion
SKU: CEN RDO0003
Price: 2375 ZAR
Availability: InStock

SKU: CEN RDO0003

BRAND: Centurion

In Stock
R 2,731.25_{(inc VAT)}
R 2,375.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Garage Door Motors

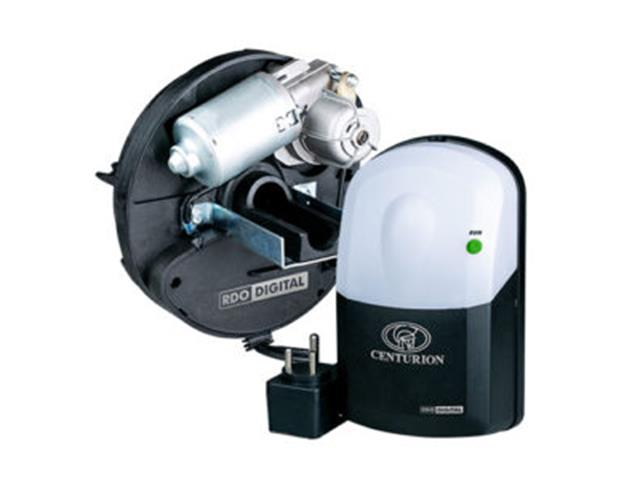

Centurion Garage Door RDO Digital ROLL-Up Motor Kit - 2x4 Button Remotes, Motor 24VDC, Control Box, 2x12V1.3AH Batteries & PSU, Weight Bar, Max Lifting Capacity:20Kg, Max Door Area:10m (Max Width:2.8M, I/P:220V AC +/- 10% @ 50Hz

Garage Door RDO Digital ROLL-Up Motor Kit

Specifications

Technical Data : RDO DIGITAL
Input voltage : 220V AC +/- 10% @ 50Hz¹
Motor voltage : 24V DC
Motor power supply - rated : 120W DC
Motor supply : Battery-powered with 2 x 1.3Ah 12V batteries and 300mA charger
Maximum door width : 2.8 meters
Maximum door area : 10 meters²
Maximum lifting capacity : 20kg
Operations in standby mode : 12 to 20 cycles, dependent on door size, weight, height and duration of power failure
Operator travel speed : 110 to 150mm/sec, dependent on door weight
Door travel adjustment : Digitally-adjustable limits
Safety obstruction force system : Automatic with adjustable offset
Light : LED
Onboard receiver type : NOVA code-hopping (single channel)
Receiver code storage capacity : 20 remotes²
Receiver frequency : 433Mhz

Downloads

Datasheet - CEN RDO0003

Additional Information

Device	Motor Kit
Type	Garage Door \| RDO \| Digital \| Roll-Up
