BMT RELAY BOARD 1CH 5V 30A H/DUT

Name: BMT RELAY BOARD 1CH 5V 30A H/DUT - Communica [Part No: BMT RELAY BOARD 1CH 5V 30A H/DUT]
Brand: Communica
SKU: BMT RELAY BOARD 1CH 5V 30A H/DUT
Price: 73.91 ZAR
Availability: InStock

SKU: BMT RELAY BOARD 1CH 5V 30A H/DUT

BRAND: Communica

In Stock
R 85.00_{(inc VAT)}
R 73.91_{(ex VAT)}

Collections: IoT, Internet of things

Type: Relay Boards

Category: 1 Channel Relay Boards, Compatible with Arduino, Iot

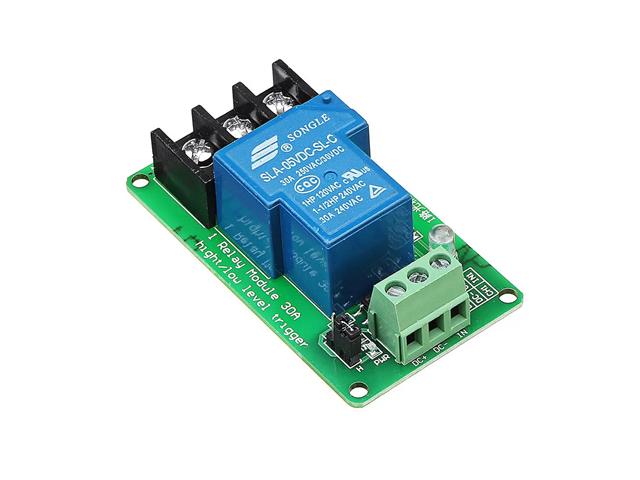

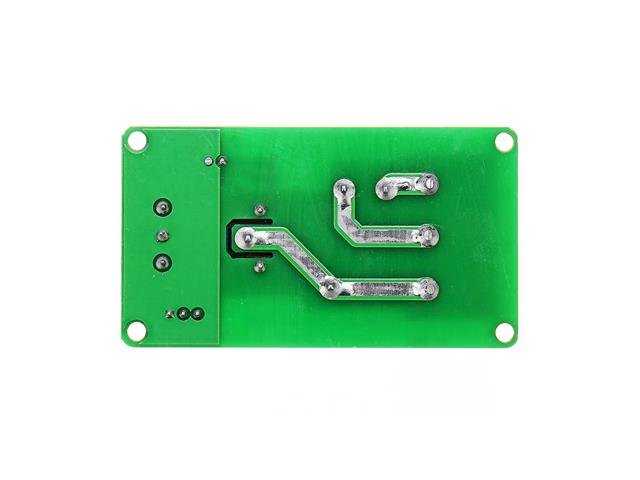

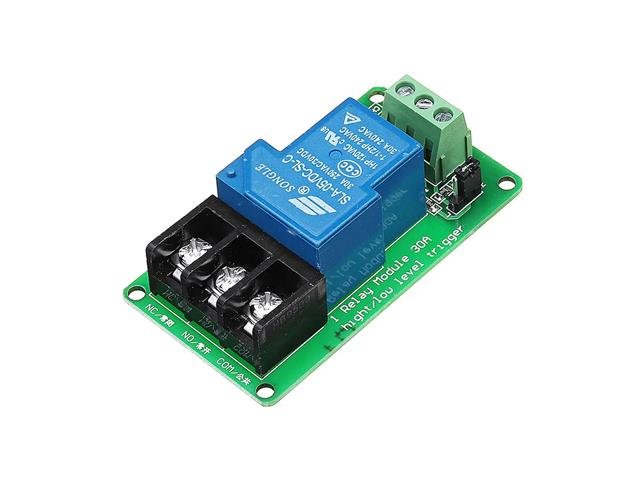

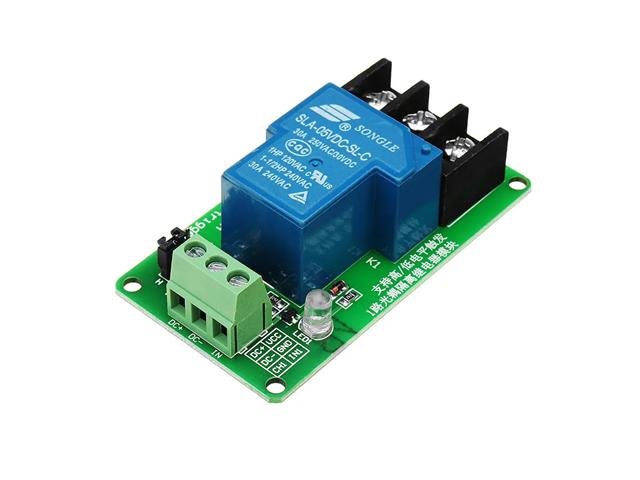

5V 30A Relay Module with High Current Output Terminals. Compatible with Arduino 5V/30A CH Relay Module with N/O and N/C Contacts with Opto Isolated I/P

5V 30A Relay Module

Features

The module adopts genuine high quality 30A relay, the maximum load of normally open interface: AC 250V/30A, DC 30V/30A.
Using chip optocoupler isolation, strong driving ability, stable performance; trigger current 5mA.
Module operating voltage 5V.
The module can be triggered by a jumper to set a high or low level.
The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient.
Module size: 72 x 40 x 24mm (Length * Width * Height), with module holder: 86 x 43 x 45mm
Product net weight: 46g
4 fixing bolt holes, hole 3.1mm, spacing 44.5 x 27.5mm

Specifications

Relay : 5V
Quiescent Current : 5mA
Maximum current : 190mA
Trigger current : 2-4mA

Module interface description:

DC+: Module DC power supply positive (trigger terminal voltage positive)
DC-: Module DC power supply negative (trigger terminal voltage negative)
IN: Signal trigger terminal (default trigger voltage is the same as power supply)
High/low level trigger mode selection, when the jumper is connected with the L terminal, the IN terminal is low level trigger, and when connected to the H terminal, it is triggered high level.
Normally closed terminal (NC): relay normally closed terminal
Common (COM): Relay Common
Normally open (NO): The relay is normally open

Package includes:

1 x Realy Module

Additional Information

Device

Relay Module
