BM500 1,0M

SKU: BM500 1,0M

BRAND: Communica

In Stock
R 1,012.00_{(inc VAT)}
R 880.00_{(ex VAT)}

Collections: Tools & Supplies

Type: Antistatic Control Products

Category: Antistatic Control Products

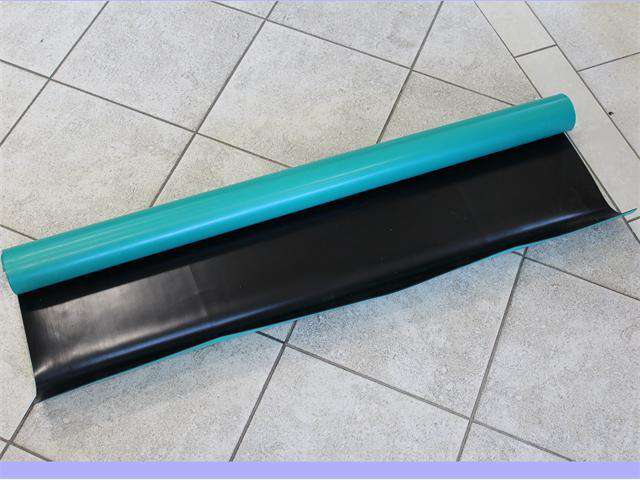

Dual Layer Antistatic Conductive Rubber Mat 1mx1mx2mm with Black and Green Layers

Overview

Features

Specification

Construction : Dual-layer rubber material
Mat is antistatic as well as conductive.
Suitable for workstation applications.
Weight : 0.86 Ibs/sq.ft.(0.4g/cm)
Color :
- Top layer(Antistatic) - Green
- Bottom layer (Conductive ) - Black
Size :
- Width - 1M
- Length : 1M
- Thickness : 2mm
Shelf Life : Shall be capable of being stored for at least five (5) years Without deterioration of its performance.

Electrical Properties

Top surface resistivity : 10e7~10e9 Ohms/sq - Test Method : ANSI/EOS/ESD-S11.11
Bottom surface resistivity : 10e3 - 10e5 Ohms/sq - Test Method : ANSI/EOS/ESD-S11.11
RIG Resistance : 10e6 - 10e6 Ohms - Test Method : ANSI/EOS/ESD-S4.1
RTT Resistance : 10e7—10e7 Ohms - Test Method : ANSI/EOS/ESD-S4.1
Charge Decay : 0.01 — 0.02 Seconds - Test Method : FTMS 101C, M4046
Tensile Strength:
- Top Layer(Antistatic) : 135kg/cm2- Test Method : ASTM D412
Bottom layer (Conductive ) : l47kgs/cm2 - Test Method : ASTM D412
Elongation (%)
- Top Iayer(Antistatic) : 135kg/cm2 - Test Method : ASTM D412
Bottom layer (Conductive ) : l47kgs/cm2 - Test Method : ASTM D412
Hardness : 65+ 5 ShoreA( astrnd-2240)- Test Method : ASTM D2240
Heat resistance : 32 F to 290 F (0 °C to 143°C )- Test Method : ASTM D623
