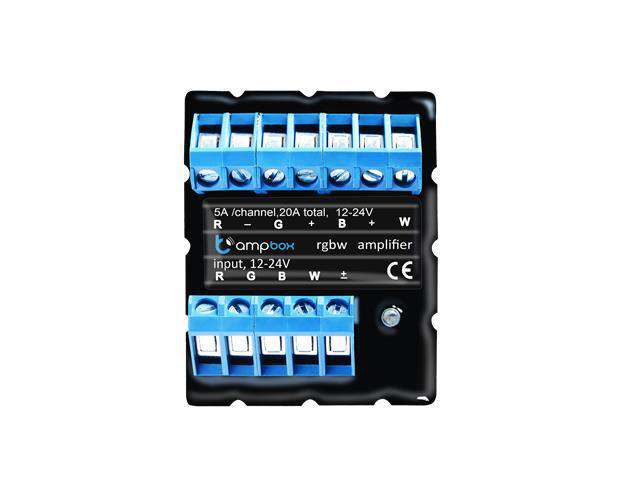

BLE-AMPBOX

Ampbox is a Professional, 4 CH LED Amplifier Designed to Work in Traditional and Smart Low-voltage LED Systems

Electrical parameters

• Supply voltage 12– 24V DC
• Channels 4
• Max current 20A
• Max power 480W
• Max current / channel 5A
• Energy consumption < 0,1 W

Physical characteristics

• Dimensions 48 x 40 x 19 mm
• Protection IP20
• Housing non-flammable resin which dissipates heat
• Connection screw terminal block connector
• Mounting inelectrical back box, in the lightning fixture housing
• Operating range from -10 to + 40°C
• input PMW common VCC or GND
• Output PMW common VCC
• Galvanic separation yes (optical)
• Power IC internal rectifiers n-type metal oxide semiconductor field effect transistor
• Correction signal yes (digital)
