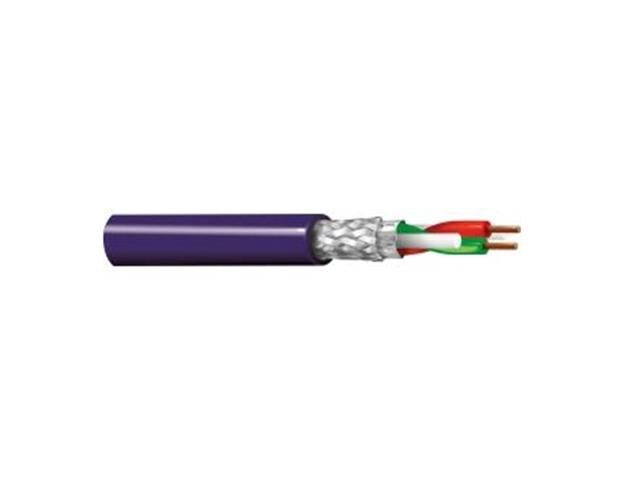

BELDEN 70101NH - Actuator/Sensor Cable - 8719605012142

BELDEN 70101NH

SKU: BELDEN 70101NH

BRAND: Belden


In Stock
R 44.85 (inc VAT)
R 39.00 (ex VAT)

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: Profibus Cable

Profibus DP Cable 1x2x22AWG; Solid Cu; Frnc Violet Halogen Free Flame Retardant

Profibus DP Cable

Specifications

VOLTAGE
UL Voltage Rating
30 V RMS
Temperature Range

Installation Temperature Range

-15°C To +70°C

Storage Temperature Range

-40°C to +70°C

Operating Temp Range (Flexible Install)

-15°C To +70°C
Mechanical Characteristics

Min. Bend Radius During Installation

78 mm

Min Setting Radius

39 mm
Standards

UL AWM Style Compliance

AWM 20851

CPR Euroclass

Eca
Applicable Environmental and Other Programs

Environmental Space

Indoor
Flammability, LS0H, Toxicity Testing

UL Flammability

Horizontal flametest

IEC Flammability

IEC 60332-1-2

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

Additional Information

Device Cable
