BDD WORM GEAR MOTOR 12V 90RPM - Motors, Motor Drivers & Controllers -

BDD WORM GEAR MOTOR 12V 90RPM

Name: BDD WORM GEAR MOTOR 12V 90RPM - Communica [Part No: BDD WORM GEAR MOTOR 12V 90RPM]
Brand: Communica
SKU: BDD WORM GEAR MOTOR 12V 90RPM
Price: 160 ZAR
Availability: OutOfStock

SKU: BDD WORM GEAR MOTOR 12V 90RPM

BRAND: Communica

Sold Out
R 184.00_{(inc VAT)}
R 160.00_{(ex VAT)}

Collections: DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Worm Gear Motor

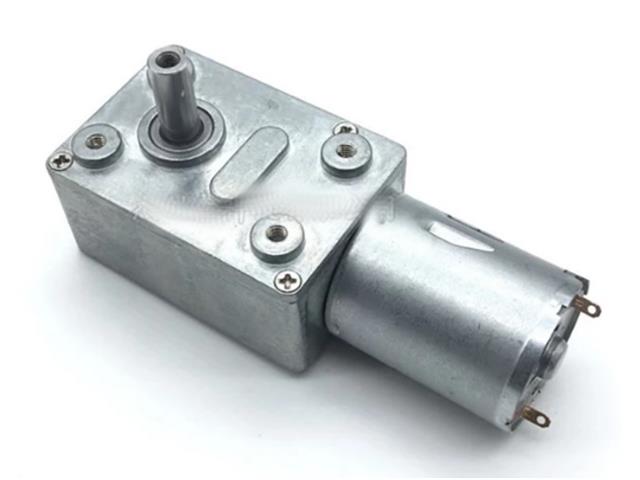

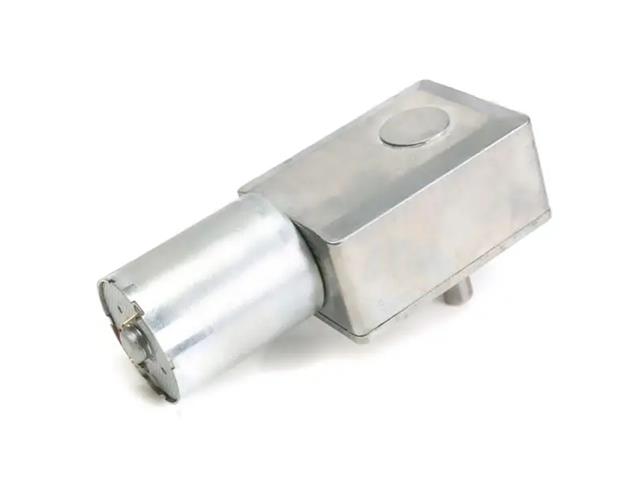

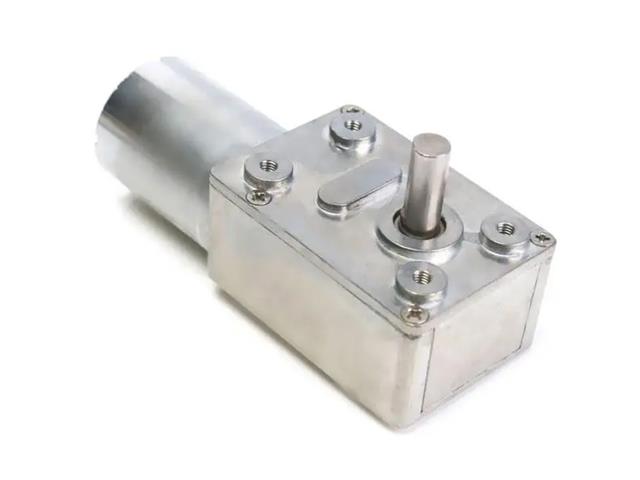

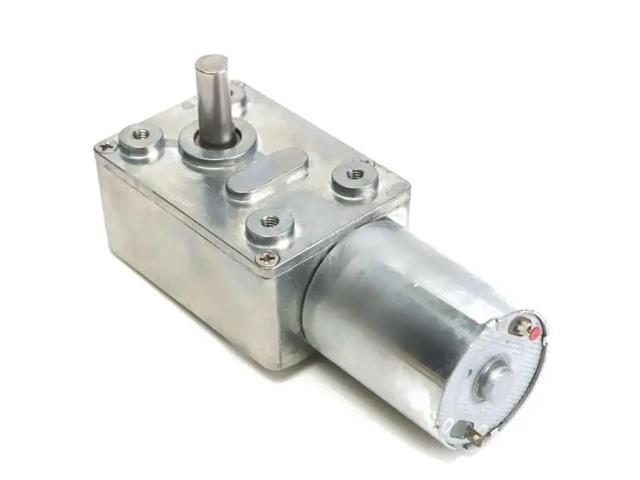

Reversible high torque turbo worm gear motor JGY370 DC 12V 90RPM

Turbo Worm Gear Motor

Features

The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation.
Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.
The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.

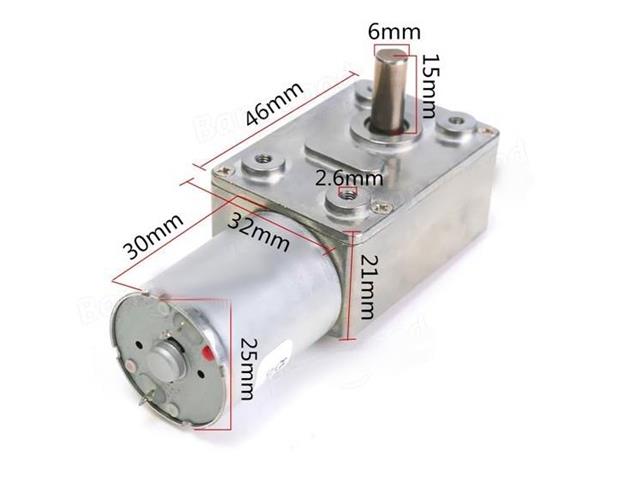

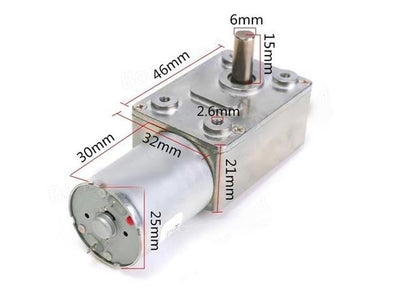

Specifications

Model: JGY370
Voltage: DC6V/12V
No load speed: 90r/min
Output torque: 5.6kg.cm
Rated current: 0.06A
Weight: 163g
Application: open the window, door, Mini winch. ect.

Package included:

1 x High torque Turbo worm Geared motor

Downloads

Datasheet - WORM GEAR MOTOR 12V

Additional Information

Device	Gear Motor
Type	Turbo \| Worm \| JGY370
