BDD MICROWAVE SENSOR SWITCH 220V - Sensors -

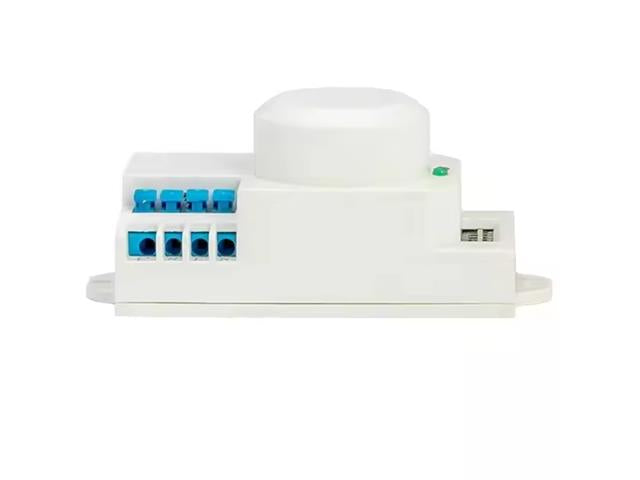

BDD MICROWAVE SENSOR SWITCH 220V
Microwave Radar Sensor Switch 220V 1200W

Name: BDD MICROWAVE SENSOR SWITCH 220V - Communica [Part No: BDD MICROWAVE SENSOR SWITCH 220V]
Brand: Communica
SKU: BDD MICROWAVE SENSOR SWITCH 220V
Price: 191.30 ZAR
Availability: InStock

SKU: BDD MICROWAVE SENSOR SWITCH 220V

BRAND: Communica

In Stock
R 220.00_{(inc VAT)}
R 191.30_{(ex VAT)}

Or split into 4x interest-free
payments of R47.82 Learn more

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Microwave Radar Sensor Switch

Microwave Radar Sensor Switch

Features

Wide range detection, 360° omni-directional detection, high frequency output less than 0.2mw, radiation is harmless to human body.
Adopts 5.8Hz working frequency, slightly affected by external natural factors, with stable and reliable performance.
Can automatically recognize the level of ambient light. The light will be turned on when it reaches the setting lighting demand and someone is there, otherwise not lighted on.
The automatic induction function can provide you much convenience. Automatically turn on the light after sensing people, otherwise turn off.
Use high quality 10A 250V AC relay, with intelligent control, electronic protection function.
Widely used in street lamp, stairway lamp, factory, corridor, passageway and so on.
Installation reminder:

The sensor switch has a blind spot in the center. If it is installed in a small indoor environment (such as a bathroom or kitchen), try to install the position to the side or install it in the corner, because the sensing area will be better, otherwise the vertical center activity may not be sensed.
Control principle:
The microwave sensor uses the Doppler principle to transmit and receive high-frequency microwave signals (accurately sense the movement changes of the object), and to control the opening (lighting) and off (extinguishing) of the load lamps through signal amplification and intelligent recognition of the single-chip program.
* Doppler principle, the principle of radar, is widely used in aviation, aerospace, and military.
Intelligent induction:
1) When a person enters the sensing detection range (within 16m diameter), the load lamp lights up; when the person passes the inductive detection range and the set delay time counts down, the load lamp automatically goes out.
2) When the person enters the inductive detection range and the load lamp has been illuminated, if the person stays within the inductive detection range, as long as the person has a slight movement (including the movement of the limb) before the end of the set delay time countdown, The sensor will drive the load luminaire to illuminate continuously until the person leaves and the set time countdown is over, the load luminaire is automatically extinguished.
Intelligent identification:
- Simply put, this product can be set to not light up during the day, only when someone lights at night; it can also be set to light at any time according to demand.

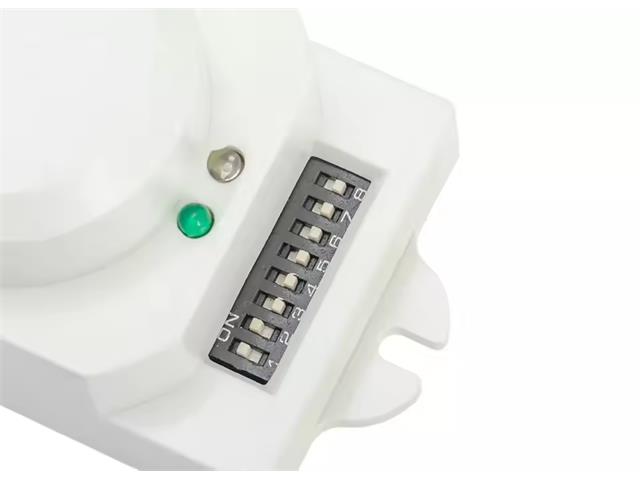

- This product has a variety of light setting options, customers can adjust according to their needs, to meet the lighting requirements in different environments.
Anti-interference:
As we all know, there are many signals with different frequencies in the space (such as 3GHz signal of mobile phone, 2.4GHz signal of wifi, 433KHz signal of TV remote control, sound wave signal, etc.), and some signals are similar to human body induction signals. Our products can intelligently identify useful human body sensing signals, prevent false triggering of other interference signals, and ensure product reliability.

Specifications

Parameters

Element Type: Microwave Sensor Switch
Material: ABS
Color: as shown in the picture
Size: approx. 9 x 4.2 x 4.2 cm (3.5 x 1.7 x 1.7 inches).
Weight: approx. 83g.
Operating voltage: 220-240 V AC
Mains frequency: 50/60 Hz
Installation method: ceiling mount
HF system: 5.8 Hz +/- 75 MHz CW radar
Power consumption <0.5 W
Transmit power <0.2 mW
Power consumption: 1200 W
Detection angle: 360°
Work delay: 10 seconds to 30 minutes
Detection distance: 2~10m
Lighting control lighting: 10-2000LX
Operating temperature: -35°C to +80°C."
