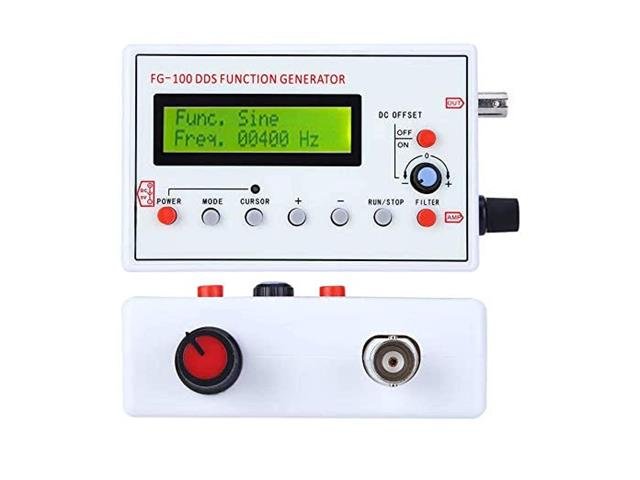

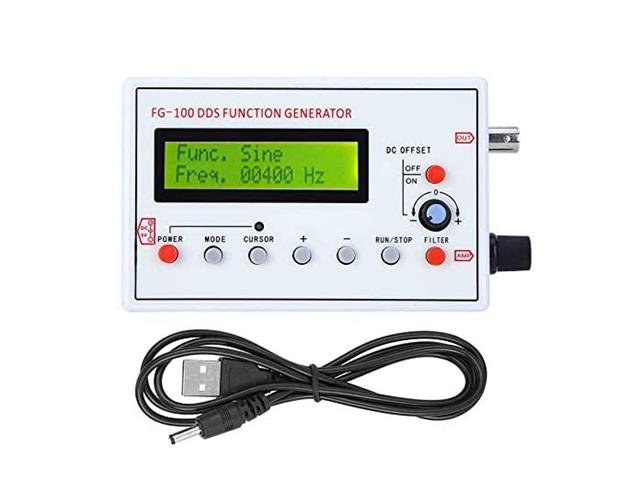

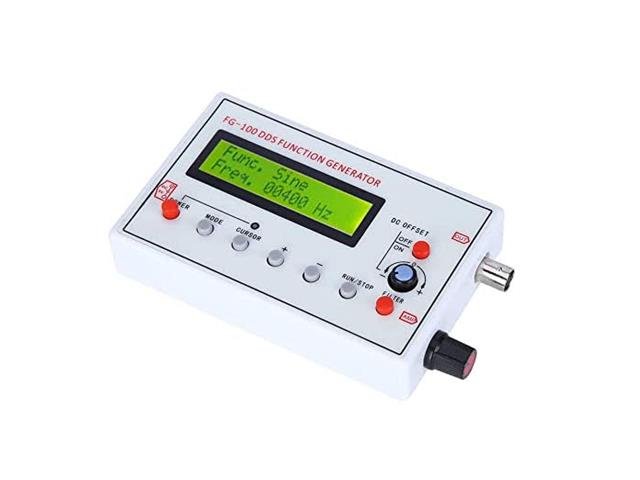

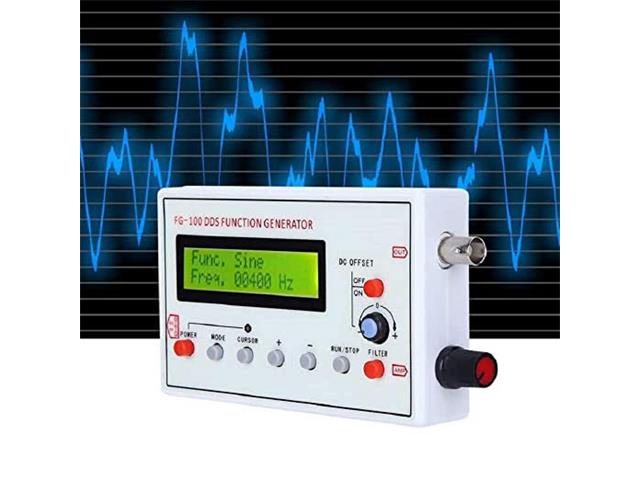

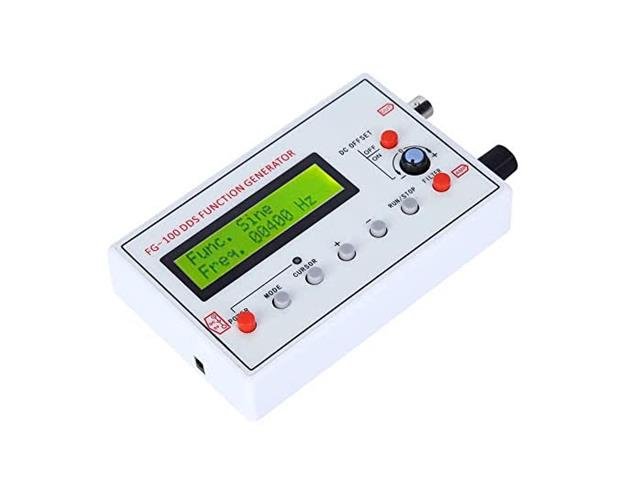

BDD FD100 DDS FUNCTION GENERATOR
DDS Function Generator 1HZ-500KHz. Output Waveforms: Sine Wave, Wave, Triangular Wave, Forward Sawtooth Wave, Reverse Sawtooth Wave

SKU: BDD FD100 DDS FUNCTION GENERATOR

BRAND: Communica


Sold Out

Collections: Test & Measurement

Type: Function Generators & Synthesisers

Category: Function Generators & Synthesisers

DDS Function Generator 1HZ-500KHz

  • Due to the high and stable frequency of the DDS, it is also very suitable for the oscilloscope's scan time calibration factor.
  • The wave output is also suitable for oscilloscope attenuators and probe pulse adjustment
  • The main output waveform are sine wave and wave, triangular wave, sawtooth wave
  • Have a filter (can be turn on/off ) to suit the output of sine wave and pulse wave
  • Small size, multiple functions, simple operation, easy to carry
  • Made of high-quality material, durable and practical to use
  • Item Type: Function Generator
  • Material: ABS
  • Frequency Range: Sine wave 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range
  • Resolution: 1Hz
  • Output Waveforms: Sine wave, wave, triangular wave, forward sawtooth wave, reverse sawtooth wave
  • Sine Wave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz)
  • Output Amplitude: Maximum ±10V(P-P)
  • Output Impedance: 50 ohm
  • DC Offset: Maximum ±10V, can be disabled
  • nternal Filter: For sine wave or pulse, can be turn on/off
  • Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended
Device Generator
Type DDS | Function | 1HZ-500KHz
