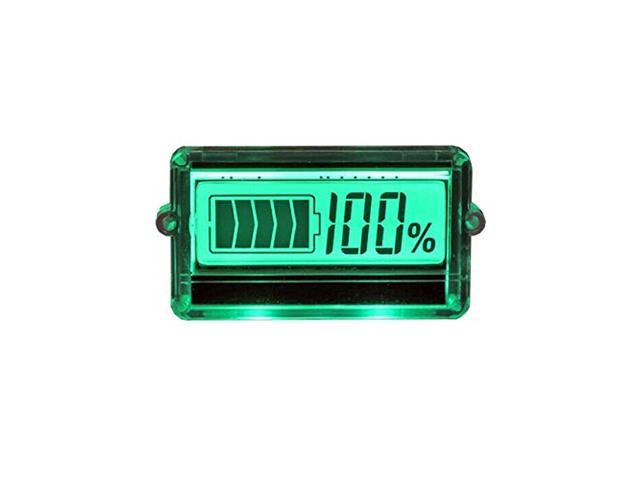

The monitor can test the capacity of Lead-acid battery/Lithium-ion battery, and display them with a battery symbol and percentage. Users can know the state of the battery in time. This battery tester is suitable for mobile and portable equipment, ups batteries, electric vehicles, e-bikes, balance cars, cleaning machines and so on.
- Suitable for Lead-acid/Pb-acid battery of 12V/24V/36V/48V and 3 ~ 15 cells Lithium-ion battery(not for Lithium iron phosphate battery).
- Applicable to all kinds of instrumentation, measuring equipment, mobile portable equipment, sweeping machine, balance cars, battery cars, etc.
- Wide working voltage range: this battery monitor can tolerate DC 9.6-60V.
- Low working power consumption and standby power consumption.
Adjustment Method:
- Long press the button on the back of the monitor when turned off to power on the monitor.
- When the monitor is on, it shows the current battery specifications. Press the back button to choose the battery specifications.
- After selecting the required specifications, then turn off and power on the monitor again.
Wiring method:

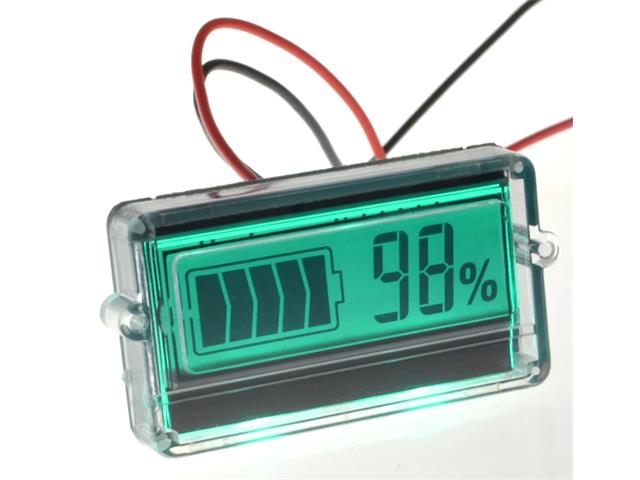

- The red line is connected with the battery positive and black line is connected with the battery negative. then the white plug plugged into socket of the display, please pay attention to the plug direction, turn on the switch or power on can be used normally.
- Screen: LCD
- Operating current: <5mA
- Operating voltage: 9.6-60V
- Maximum operating voltage: 60V
- Operating temperature: 20℃ - 50℃
- Fit for Battery Type: lead-acid/Pb-Acid battery and Lithium battery
| Device |
Power Indicator |
| Type |
Programmable | LCD | Battery |
