BATT 51,2V200A LI-ION LVT
LVTOPSUN Powerwall Lithium Ion Phosphate (LiFePO4) Battery, 51.2V 200A 10.24KW, Charge Vltg:55.68-56.16V, Max Charge&Discharge Current:100/120A, Short Circuit Current:540A,RS232/485/CAN, 6000 Cycles@90% DoD, LVTS-512200, 5yr Warranty, 465x186x695mm 83Kg

Name: BATT 51,2V200A LI-ION LVT - Communica [Part No: BATT 51,2V200A LI-ION LVT]
Brand: LVTOPSUN
SKU: BATT 51,2V200A LI-ION LVT
Price: 39130.44 ZAR
Availability: InStock

SKU: BATT 51,2V200A LI-ION LVT

BRAND: LVTOPSUN

In Stock
R 45,000.01_{(inc VAT)}
R 39,130.44_{(ex VAT)}

Collections: Loadshedding, Power

Type: Batteries

Category: Lithium Iron Phosphate Batteries, Loadshedding

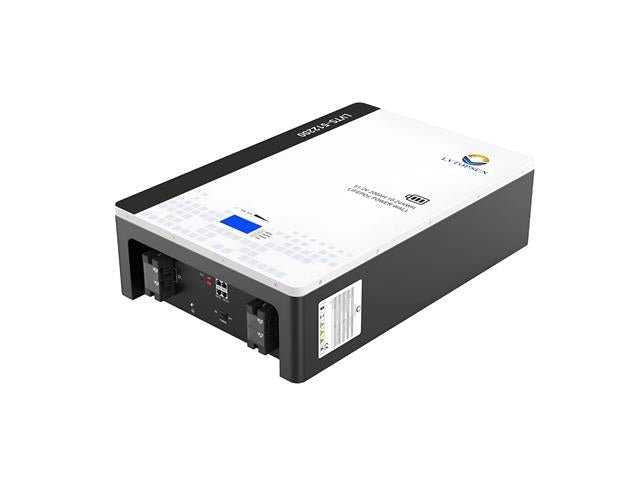

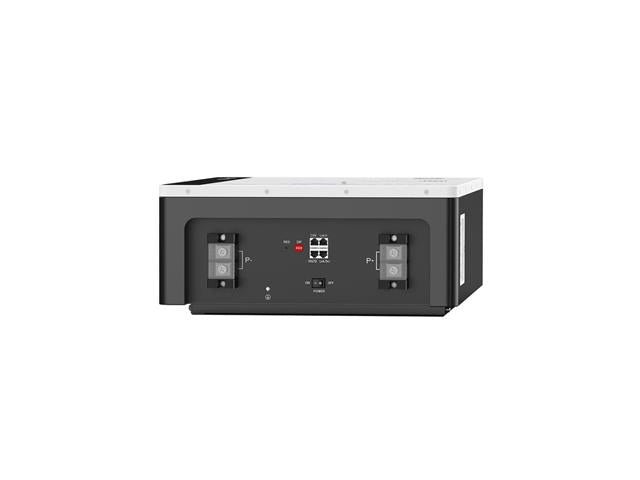

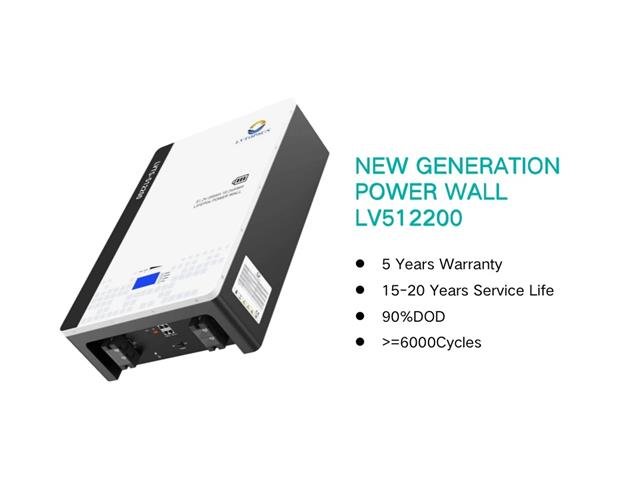

Powerwall Lithium Ion Phosphate (LiFePO4) Battery

Specifications

Nominal Voltage : 51.2Vdc
Nominal Capacity : 200Ah
Battery Energy : 10240kWh
Charge Voltage : 55.68-56.16 Vdc
Discharge Voltage : 45.6-56.16 Vdc
Maximum Charge Current : 100A
Maximum Discharge Current : 120A
Maximum Charge Power : 5120W
Nominal Discharge Power : 6144W
Short Circuit Current : 540A

Communication

Display : LED Indicator + LCD Display
Communication : RS232, RS485, CAN

General

Dimension(WxDxH mm) : 465x186x695mm
Weight (Kg) : 83.5kg
Installation : Wall Mounted
Working Temperature : -20°C ~ 60°C
Storage Temperature : ≤25°C, 12 months; ≤35°C,6 months; ≤45°C, 3 months
Operating/ Storage Humidity : ≤95%RH
Max Operating Altitude : ≤2000m
IP Rating : IP20
Cell Technology : LiFePO₄, Lithium Iron Phosphate
Cycle Life : 6000 Cycles @ 90% DOD / 25°C / 0.5C, 60% EOL
Warranty : 5 Years
Scalability : Max 15 batteries in parallel

Downloads

Datasheet - BATT 51,2V200A LI-ION LVT

Additional Information

Device	Battery
Type	Powerwall \| Lithium Ion \| Phosphate (LiFePO4)
