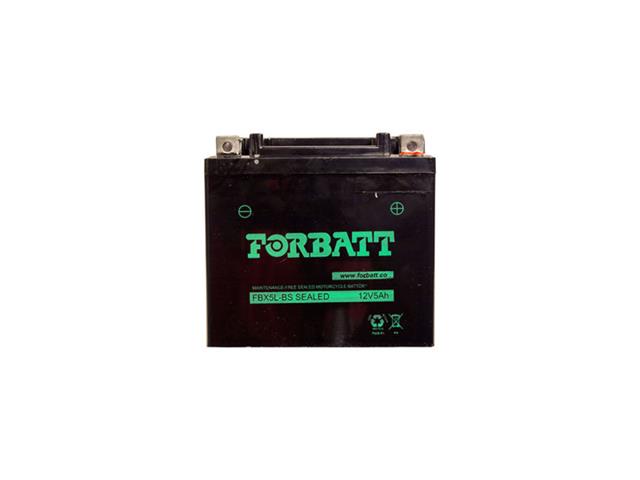

Rechargeable Battery 12V5AH (L=113 W=70 H=106mm) 1.66kg, FBX5L-BS, Recommended for use IN : Motorbikes, Scooters, Jet Skis
12V5AH Rechargeable Battery
Specifications
- Nominal Voltage : 12V
- Rated Capacity (10 hours rate) : 5Ah
Dimensions
- Length : 113 mm (4.45 inches)
- Width : 70 mm (2.76 inches)
- Height : 106 mm (4.17 inches)
- Total Height : 106 mm (4.17 inches)
- Approx. Weight : 1.66 kg (3.66 Lbs.)
- Charge Current : 0.5A (14.4V constant voltage charge)
Characteristics
- Capacity (25°C/77°F)
- 10 hours rate : 0.5A-10.5V 5.0 Ah
- 5 hours rate : 1.0A-10.5V 4.1 Ah
- 1C : 5A-9.6V 2.3 Ah
- 3C : 15A-9.6V 1.8 Ah
- Cranking Amperes (by Midtronic Tester) : 139A
- Cold Cranking Amperes (-18°C SAE Standard) : 50 A
- Cold Cranking Amperes (-18°C EN Standard) : 75 A
- Internal Resistance (at 1KHz) : Approx. 18.1mΩ
- Operating Temperature Range
- Charge : 0°C (32°F) ─ 40°C (104°F)
- Discharge : -30°C (-22°F) ─ 50°C (122°F)
- Storage : -15°C (5°F) ─ 40°C (104°F)
- Life Expectancy (Cycle Use)
- 60% depth of discharge 250 cycles
- 30% depth of discharge 400 cycles
- Charge Retention (self-discharge life) at 20°C (68°F)
- 1 month : 91%
- 3 month : 89%
- 6 month : 80%
- Type : Sealed
- Case Material : ABS
