• Nominal Voltage : 12V
• Rated Capacity : 2.3Ah
• Dimensions
• Length : 35mm
• Width : 43mm
• Height : 61mm
• Total Height : 67mm
• Approximate Weight : 0.98kg

Characteristics

• Capacity 77°F(25°C)
• 20hour rate (0.07 A) : 2.3Ah
• 10hour rate (0.13 A) : 2.1Ah
• 5hour rate (0.24 A) : 1.96Ah
• 1hour rate (0.84 A) : 1.38Ah
• 15min rate (4.16A) : 1.04Ah
• Internal Resistance
• Full Charged, 77°F(25°C) : 65mΩ
• Affected By Temperature (20hr Rate)
• 104°F(40°C) : 102%
• 77°F(25°C) : 100%
• 32°F(0°C) : 85%
• 5°F(-15°C) : 65%
• Self-Discharge 68°F
• Capacity after 3 month storage : 90%
• Capacity after 6 month storage : 80%
• Capacity after 12 month storage : 60%
• Max. Discharge Current 77°F((25°C) : 34.5A(5s)
• Terminal : T1

Charge (Constant Voltage)

• Initial Charge Current “LESS” than 0.42A
• Cycle : 14.5V~14.9V(-24mV/°C)
• Float : 13.6V~13.8V(-18mV/°C)

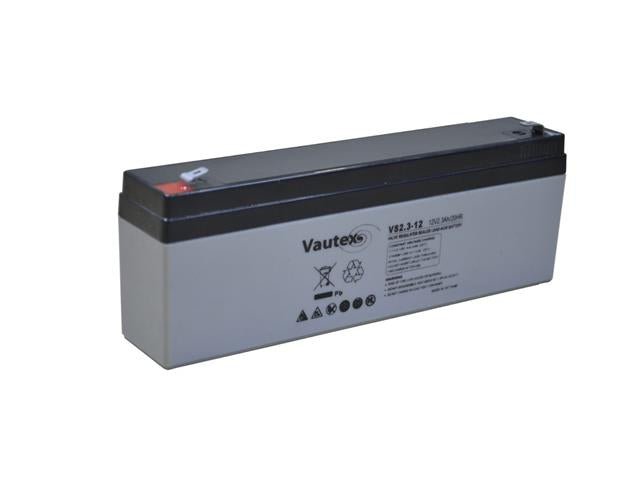

1. Datasheet - BATT 12V2,3 VTX
