Maintenance & Cautions

• Ensure all batteries operating in a series based connection are not charged excessively;
• Ensure all batteries operating in a series based connection are not discharged excessively;
• Batteries must be charged with the correct voltage;
• Recharge capacity will be 1.1 - 1.15 times the discharge capacity;
• Effect of temperature on cycle charge voltage: -5mV/degrees per cell;
• It is imperative the battery is always in an upright position and never on its side.

Factors Affecting Battery Life

• Depth of discharge
• Temperature
• Recharge rate
• Refer to Technical Specifications

Physical Attributes

• Dimension (mm) : L97mm x W43mm x H58mm
• Approximate Weight : 0.56 kg (1.23 lbs)

Voltage & Designations

• Nominal Voltage (V) : 12 (6 Cells per unit)
• Designed Floating Life (20°C) : 5 Years
• Nominal Capacity (20°C) : 1.3 Ah @ 20HR-rate (to 1.75Vpc)
• Terminal Type Fasten Tab : F1
• Internal Resistance : Approximately 0.08 Ohm (fully charged @ 20°C)
• Max. Charge Current : 0.39A
• Max. Discharge Current (5S) : 20A
• Short Circuit Current : 150A
• Self Discharge : Approximately 3% per month @ 20°C

Ambient Temperature

• Discharge: -15-50°C
• Charge: -15-40°C
• Storage: -15-40°C

• Float Charge Voltage (20 - 25°C) : 13.6-13.8V (-3mV/ cell/ °C)
• Equalize and cycle Use Charge Voltage (20 -25°C) : 14.4-14.8V (-5mV/ cell/ °C)
• Container Material : ABS (UL94-V0 optional)

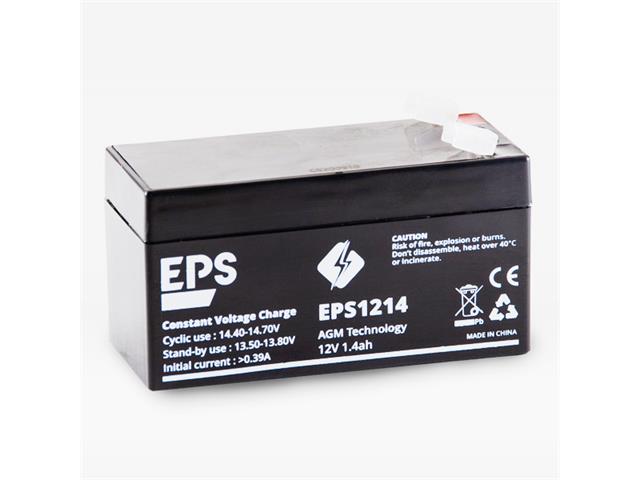

1. Datasheet - BATT 12V1,4 EPS
