Adjustable Gas Sensor for Hydrogen (H2), LPG, Methane Natural Gas (CH4), Carbon Monoxide (CO), and Alcohol detects 200~10,000ppm

MQ-5 Adjustable Gas Sensor Module

Overview

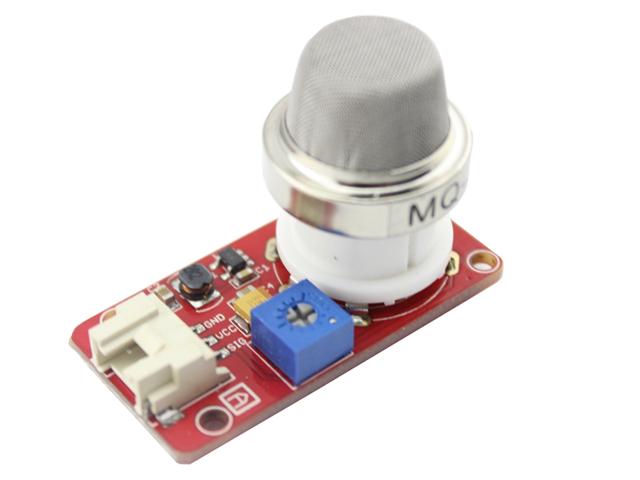

The AZL - Gas Sensor(MQ5) module is useful for gas leakage detection (in home and industry). It is suitable for detecting H2, LPG, CH4, CO, Alcohol. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by using the potentiometer.

Features

Wide detecting scope
Fast response and High sensitivity
Stable and long life
Detect Gas : LPG, Natural, Town Gas
Detect Concentrations : 200~10000ppm

Specifications

Standard Work Condition

Circuit Voltage : 5V±0.1
Heating Voltage : 5V±0.1
Load Resistance : 20KΩ
Heater Resistance : 31±10%
Heating Consumption : less than 800mw

Environment Condition

Using Temparature : 10°C-50°C
Storage Temparature : -20°C-70°C
Related humidity : less than 95%Rh
Oxygen concentration : 21%(standard condition)Oxygen concentration can affect sensitivity

Sensitivity Characteristic

Sensing Resistance : 10KΩ- 60KΩ (5000ppm methane)
Concentration Slope Rate : ≤0.6
Temparature : 20°C±2°C
Humidity : 65%±5%

Downloads

Additional Information

Device	Sensor
Type	Gas
Highlights	Hydrogen (H2) \| LPG \| Methane Natural Gas (CH4) \| Carbon Monoxide (CO) \| Alcohol \| detects 200~10,000ppm
