The CL1008 / CL1016 LCD KVM Switch series are control units that allow access to multiple computers from a single keyboard, video, and mouse (KVM), console. A single CL1008 or CL1016 can control up to 8 or 16 computers. As many as 15 additional KVM switches can be daisy-chained to the CL1008 / CL1016, so that up to 256 computers can all be controlled from a single KVM console.

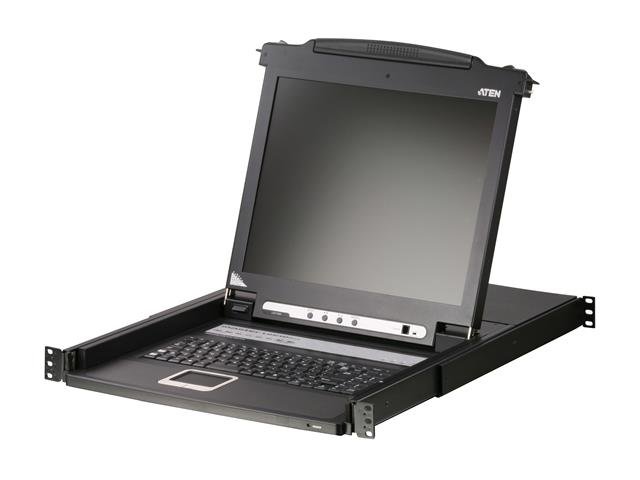

The CL1008 / CL1016 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LED-backlit LCD monitor, and touchpad in a 1U rack- mountable sliding housing.

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
• Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
• Daisy-chain up to 15 additional units – control up to 256 computers
• No software required – convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
• Auto Scan feature for monitoring user-selected computers
• Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable – add or remove computers without having to power down the switch
• Two level password security – only authorized users view and control the computers; up to four users plus an administrator with separate profi les for each
• Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
• Upgradable fi rmware
• Keyboard Language support: Keyboard Language supports English (US), English (UK),French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
