ARD ETHERNET WITH POE REV 3
ARD ETHERNET WITH POE REV 3
ARD ETHERNET WITH POE REV 3
ARD ETHERNET WITH POE REV 3
ARD ETHERNET WITH POE REV 3
ARD ETHERNET WITH POE REV 3

ARD ETHERNET WITH POE REV 3

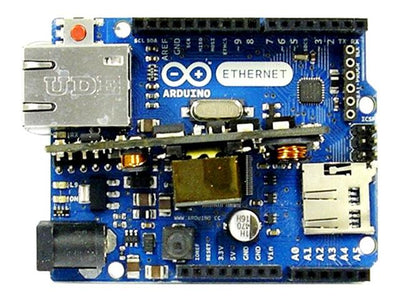

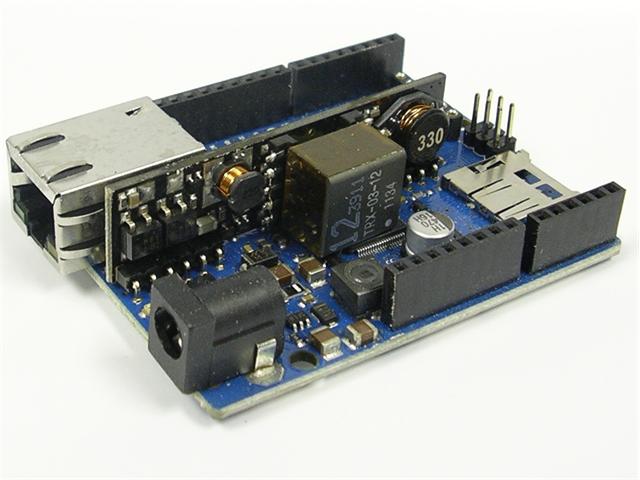

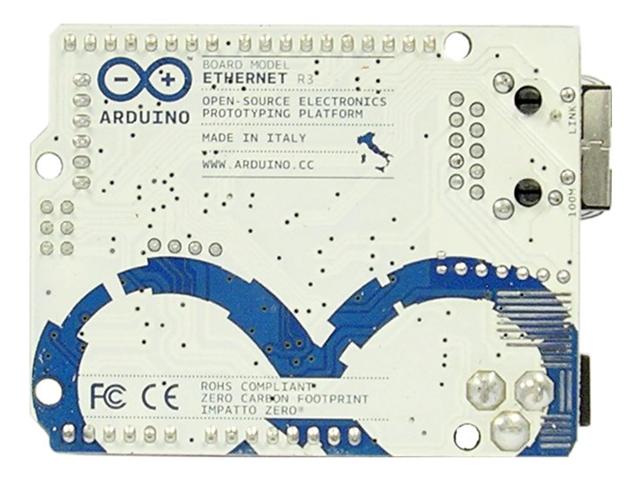

A000074 - A Single board that integrates the Arduino ATMEGA328 UNO Microcontroller with the ETH Shield. Supplied WITH the PoE Module

SKU: ARD ETHERNET WITH POE REV 3

BRAND: Arduino


Sold Out

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Arduino Ethernet, Iot

  • The Arduino Ethernet is a microcontroller board based on the ATmega328. It has 14 digital input/output pins, 6 analog inputs, a 16 MHz crystal oscillator, a RJ45 connection, a power jack, an ICSP header, and a reset button.
  • To program the board you could use an FTDI cable or the USB2SERIAL Converter (A000059)
  • Supplied WITH the PoE Module. If you don't need it, please check the Arduino Ethernet board WITHOUT PoE (A000068)
  • NB: Pins 10, 11, 12 and 13 are reserved for interfacing with the Ethernet module and should not be used otherwise. This reduces the number of available pins to 9, with 4 available as PWM outputs.
  • The Ethernet differs from other boards in that it does not have an onboard USB-to-serial driver chip, but has a Wiznet Ethernet interface. This is the same interface found on the Ethernet shield.
  • An onboard microSD card reader, which can be used to store files for serving over the network, is accessible through the SD Library. Pin 10 is reserved for the Wiznet interface, SS for the SD card is on Pin 4.
  • An optional Power over Ethernet module can be added to the board as well.
  • The 6-pin serial programming header is compatible with the USB Serial adapter and also with the FTDI USB cables or with Sparkfun and Adafruit FTDI-style basic USB-to-serial breakout boards. It features support for automatic reset, allowing sketches to be uploaded without pressing the reset button on the board. When plugged into a USB to Serial adapter, the Arduino Ethernet is powered from the adapter.
  • Microcontroller : ATmega328
  • Operating Voltage : 5V
  • Input Voltage Plug (recommended) : 7~12V
  • Input Voltage Plug (limits) : 6~20V
  • Input Voltage PoE (limits) : 36~57V
  • Digital I/O Pins : 14 (of which 4 provide PWM output)
  • Arduino Pins reserved:
    • 10 to 13 used for SPI
    • 4 used for SD card
    • 2 W5100 interrupt (when bridged)
  • Analog Input Pins : 6
  • DC Current per I/O Pin : 40mA
  • DC Current for 3.3V Pin : 50mA
  • Flash Memory : 32KB (ATmega328) of which 0.5 KB used by bootloader
  • SRAM : 2KB (ATmega328)
  • EEPROM : 1KB (ATmega328)
  • Clock Speed : 16 MHz
  • W5100 TCP/IP Embedded Ethernet Controller
  • Power Over Ethernet ready Magnetic Jack
  • Micro SD card, with active voltage translators
Keywords arduino, ethernet, poe, wireless
Device Microcontroller
References Arduino Page
