Sale

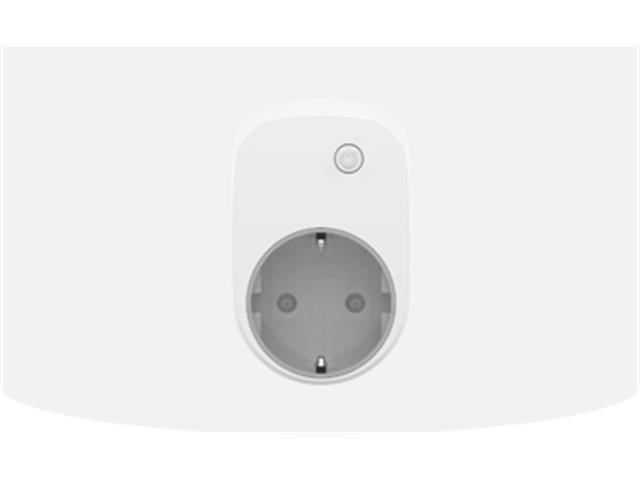

AIRLIVE SMART PLUG SP-101
Airlive Smart Life IoT, Z-Wave Plus, Home Automation, Smart Plug.

Name: AIRLIVE SMART PLUG SP-101 - Communica [Part No: AIRLIVE SMART PLUG SP-101]
Brand: Airlive
SKU: AIRLIVE SMART PLUG SP-101
Price: 637.96 ZAR
Availability: InStock

SKU: AIRLIVE SMART PLUG SP-101

BRAND: Airlive

In Stock
R 733.65_{(inc VAT)}
R 637.96_{(ex VAT)} R 978.26 You Save 34% (R 340.30)

Collections: Airlive, Clearance Sale, Home Automation

Type: Home Automation

Category: Clearance Sale, Home Automation Smart Plug

Overview

Control you light or AC powered device via Z-Wave and monitor power usage. The AirLive Smart Plug SP-101 is designed to control almost any electric devices which need to be plugged into a wall socket. It can support a resistive load of up to 1500W*2 (EU) or 1500W (US) that is suitable for most of home electric equipment. When a device is plugged into the Smart Plug it can be powered on and off used the AirLive SmartLife Plus app and at the same time measure power usage for green saving.

Features

Z-wave Plus technology
Works with Smart Home IoT kit
Up to 3000W resistive load or 320W for fluorescent load
With on/off control scheduling
Power consumption monitoring
Overload protection
Act as Z-wave repeater automatically
Longer Z-wave signal transmission
AES 128 bit Z-wave encryption

Specification

Model : SP-101 Smart Plug（DE）Z-Wave Plus
Z-Wave Standard : Z-wave plus
Z-Wave Frequency : CE：868.40 MHz, 869.85 MHz
FCC：908.40 MHz, 916.00 MHz
Maximum transmission distance : 40 M（Indoor）
Power input Range : 14.5 A
Supply Voltage : 100 ~ 240 V
Maximum Output Current : 13 A (Resistive Load)
Maximum Output Power : 110 Vac: 1500 W
20 Vac: 3000 W
Maximum Measurement Error : 3 W
LED Indicator US Type : 1 Red LED On The Top Side
LED Indicator EU Type : 1 Blue LED In Socket

Dimension and Environment

Dimensions : 51(L) x 56(W) x 78(H) mm
Operating Temperature : 0 ~ 40° C
Storage Temperature : 85% RH max

Standard Package

Package Size : 11.2 x 11.2 x 6.3 cm
Product Weight : 0.117 kg
Package Weight : 0.188 kg
Package Content : SP-101 (DE) x 1

Downloads

CE PLUG

Datasheet - AIRLIVE SMART PLUG SP-101

User Guide - AIRLIVE SMART PLUG SP-101

Quick Guide - AIRLIVE SMART PLUG SP-101
