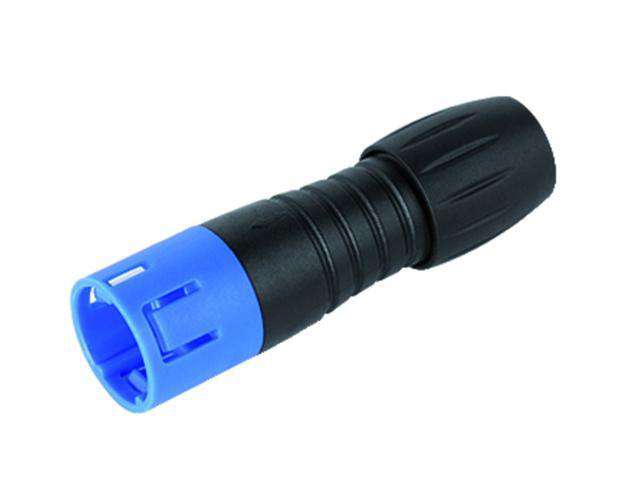

99-9209-060-04

General Values

• Connector Design : Cable Connector
• Connector locking system : Snap
• Termination : Solder
• Wire Gauge (mm) : 0,25 mm²
• Wire Gauge (AWG) : 24
• Cable Outlet : 3 - 5 mm
• Upper Limit Temperature : 85 °C
• Lower limit temperature : -25 °C

Electrical Values

• Rated Voltage : 125 V
• Rated Impulse Voltage : 1500 V
• Pollution Degree : 2
• Overvoltage Category : II
• Insulating Material Group : II
• Rated Current (40 °C) 2,5 A
• Volume Resistivity ≤ 3 mΩ
• EMC Compliance : Shielding is not Possible
• Degree of Protection : IP67
• Mechanical Operation : > 500 Mating Cycles

Material

• Contact Material : CuZn (Messing)
• Contact Plating : Au (gold)
• Contact Body material : PA (UL 94 V-0)
