97-3102A-18 (0850)

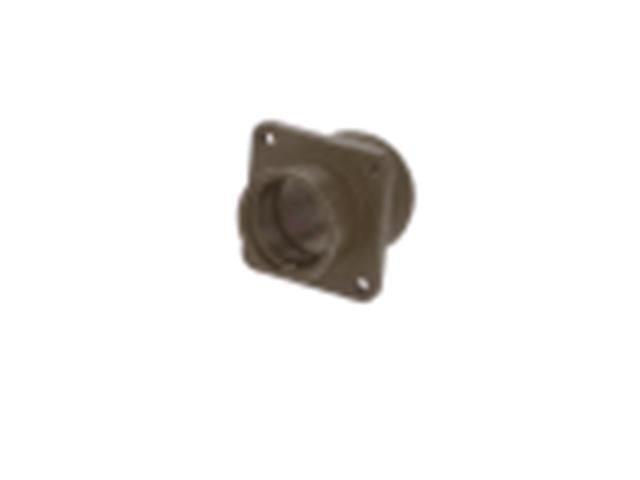

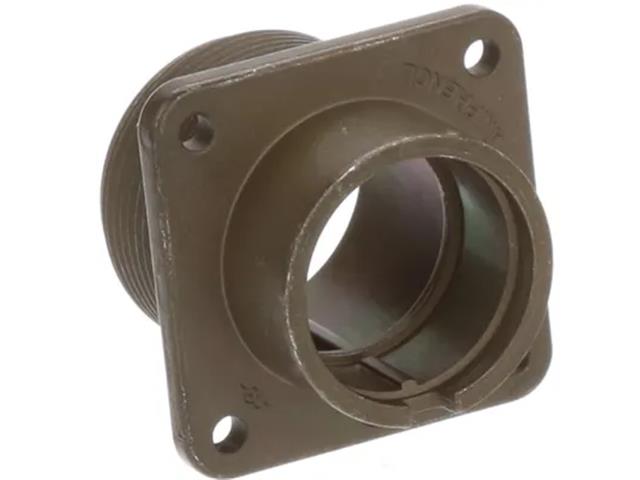

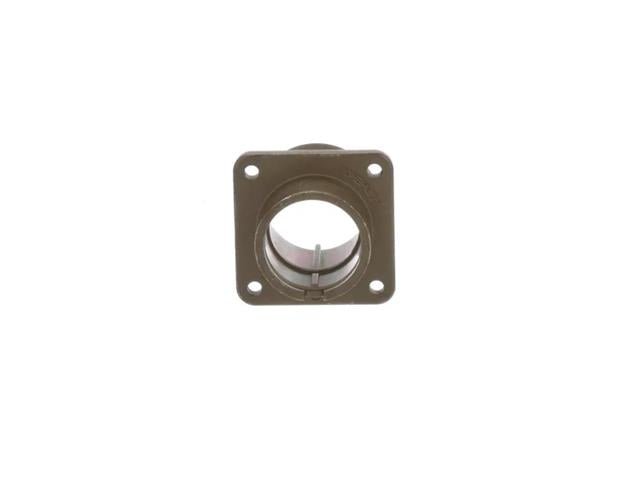

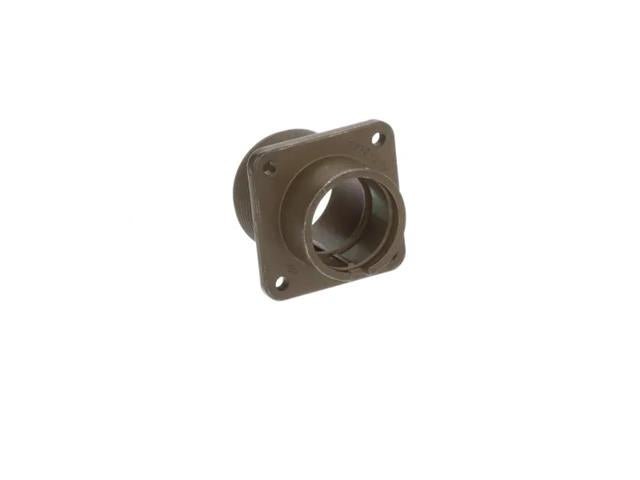

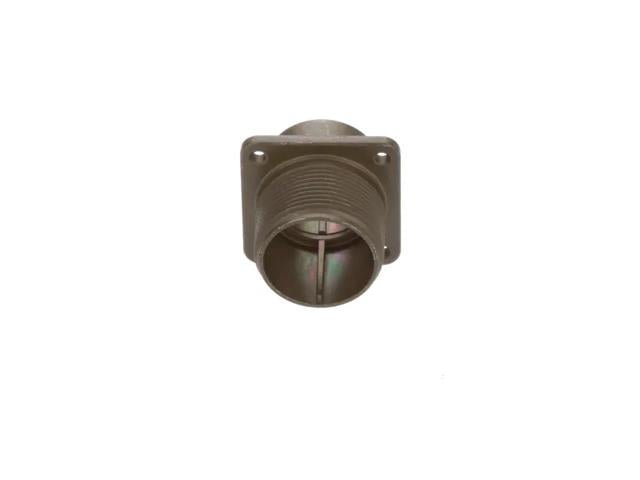

Circular Connector Square Flange Receptacle Shell Size 18 - 97 Ser. C-5015

SKU: 97-3102A-18 (0850)

BRAND: Amphenol


Sold Out

Collections: Connectors

Type: Circular Connectors

Category: Circular Connector Square Flange Receptacle Shell

Circular Connector Square Flange Receptacle Shell

  • Low cost, general duty non-environmental
  • Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
  • Low cost, general duty non-environmental
  • Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
  • Solder or crimp termination
  • Wide selection of shell styles and insert patterns
  • Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
  • Threaded coupling, hard dielectric inserts
  • Solid or split shell construction
  • Accessories for both individual wire seal and jacketed cable
  • Threaded coupling, hard dielectric inserts
  • Solid or split shell construction
  • Accessories for both individual wire seal and jacketed cable
  • Durable, field-proven design
  • Non-rotating contacts
  • RoHS Compliant Product Available EU/2002/95/EC
  • UL Recognized E115497
  • CSA Recognized LR69183
  • Agency Approvals: UL/CSA
  • Angle: Straight
  • Application: Commercial
  • Class: A
  • Family Name: 97 Series Connector Family
  • For Use With: 97 Series Type MIL-5015
  • Gender: Socket Shell Only
  • Housing Finish: Olive Drab Cadmium
  • Housing Material: Aluminum Alloy
  • Housing Type: Metal
  • IP Rating: IP67
  • Mating Type: Threaded
  • MIL Type: SAE AS50151
  • Mounting Hole Diameter: 0.12 ""
  • Mounting Type: Free Hanging (In-Line)
  • Number of Contacts: None
  • Primary Type: MIL-5015
  • Series: 97 Series
  • Shell Size: 18
  • Strain Relief: Solid
  • Type: 5015 Commercial
Device Connector
Type Square | Flange Receptacle | Shell
Highlights Shell only - No Insert.
