General technical data:

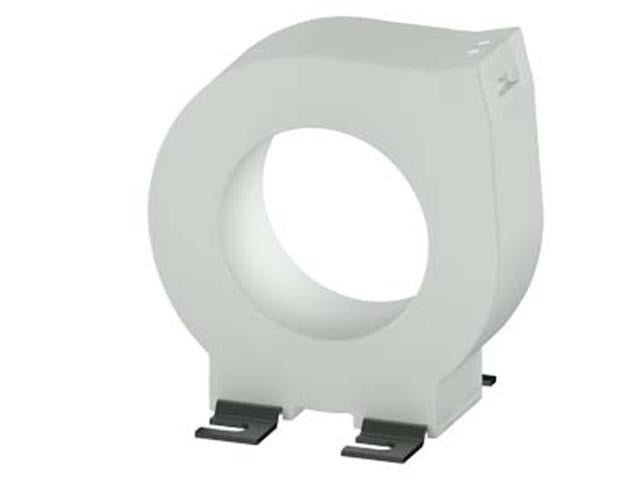

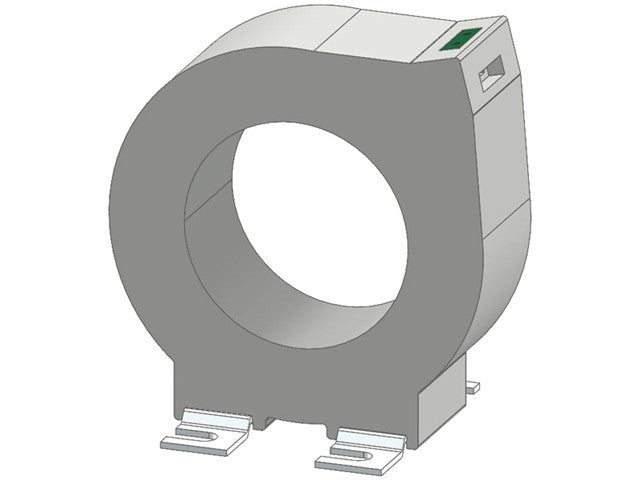

• Product Designation : Residual current transformer for fault current monitoring
• Product feature Touch protection : Yes
• Type of electrical connection at output : screw-type terminals
• Operating voltage rated value maximum :690 V
• Continuous current per phase maximum : 150 A
• Fault current at input rated value : 40 A
• Surge voltage resistance rated value : 6 kV
• Equipment marking acc. to DIN EN 81346-2 : B
• Equipment marking acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 : T
• Equipment marking acc. to DIN EN 61346-2 : B

Connections/ Terminals:

Type of connectable conductor cross-sections
• Solid : 1x (0.5 ... 2.5 mm²)
• Finely stranded with core end processing 1x (0.5 ... 1.5 mm²)
