SKU: 2901536
BRAND: Phoenix Contact
Sold Out
| Electrical isolation | 300 V (Rated insulation voltage (in each case between the digital outputs // TBUS supply, reinforced insulation in accordance with EN/IEC 61010)) |
| 300 V (Rated insulation voltage (to adjacent devices, basic insulation in accordance with EN/IEC 61010)) | |
| Test voltage for digital I/Os | 2.5 kV AC (50 Hz, 1 min.) |
| Maximum power dissipation for nominal condition | 1.32 W |
| Transient surge protection | Yes |
| Supply | |
| Supply voltage range | 19.2 V DC ... 30.5 V DC (DIN rail connector) |
| Max. current consumption | ≤ 55 mA (At 24 V DC, at 25°C) |
| Digital | |
| Output name | Relay output |
| Number of outputs | 4 |
| Contact type | Changeover contact |
| Contact material | AgSnO2 |
| Maximum switching voltage | 250 V AC/DC |
| Min. switching current | ≥ 10 mA |
| Max. switching current | 5 A (250 V AC) |
| 0.168 A (250 V DC) | |
| 5 A (24 V DC) | |
| Mechanical service life | 1x 107 cycles |
| Electrical service life | 1x 105 cycles (At 5 A, 250 V AC, ohmic) |
| 2x 105 cycles (At 2 A, 250 V AC, cosφ 0.4) | |
| 2x 105 cycles (At 1 A, 24 V DC, L/R = 48 ms) | |
| Maximum switching frequency | 2 Hz |
| Switching capacity | 120 W (24 V DC) |
| 120 W (30 V DC) | |
| 20 W (48 V DC) | |
| 18 W (60 V DC) | |
| 22 W (110 V DC) | |
| 40 W (220 V DC) | |
| 42 W (250 V DC) | |
| 1250 VA | |
| Behavior of the outputs (adjustable via DIP switch) | Hold / Reset |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| 5 lbf-in. ... 7 lbf-in. | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Status display | Green LED (supply voltage, PWR) |
| Green LED (bus communication, DAT) | |
| Red LED (periphery error, ERR) | |
| Yellow LED (digital output, DO1) | |
| Yellow LED (digital output, DO2) | |
| Yellow LED (digital output, DO3) | |
| Yellow LED (digital output, DO4) |
| Material | PA 6.6-FR |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C (>55°C derating, see technical documentation) |
| -40 °F ... 158 °F (>131°F derating, see technical documentation) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| -40 °F ... 185 °F | |
| Altitude | 2000 m |
| Permissible humidity (operation) | 20 % ... 85 % |
| Permissible humidity (storage/transport) | 20 % ... 85 % |
| Shock | 16g, 11 ms |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |

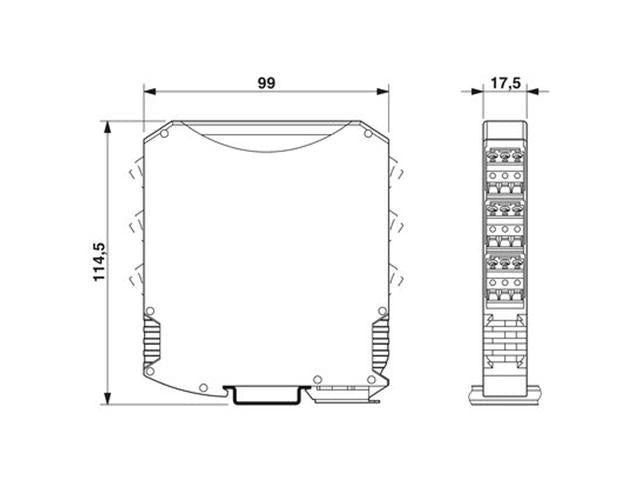

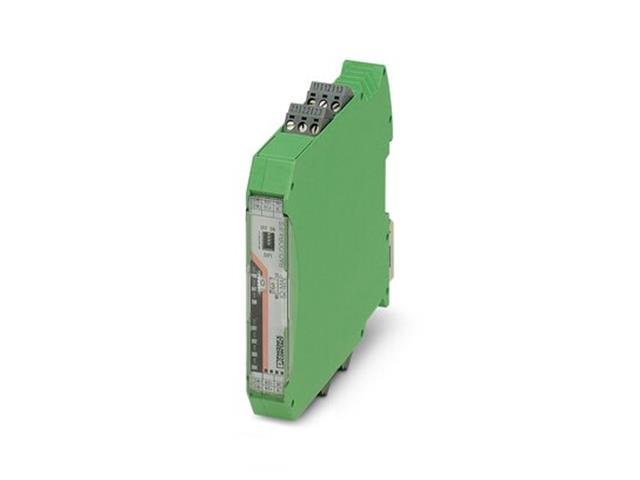

| Device | Extension Module |
| Type | Radioline I/O |
