1598ABK

SKU: 1598ABK

BRAND: Hammond

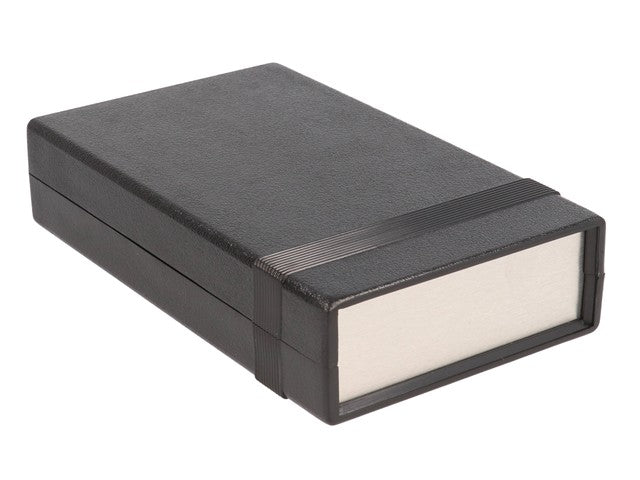

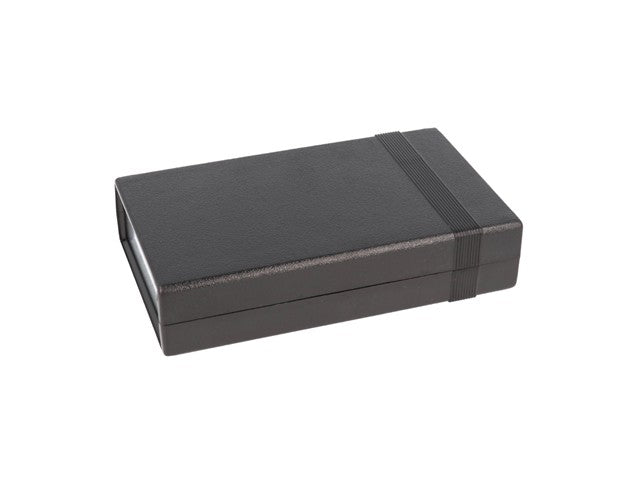

Instrument Enclosure • Flame Retardent ABS Plastic • with Aluminium End Panels • 157x94x36mm • Black

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

  • Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
  • Designed to meet IP54.

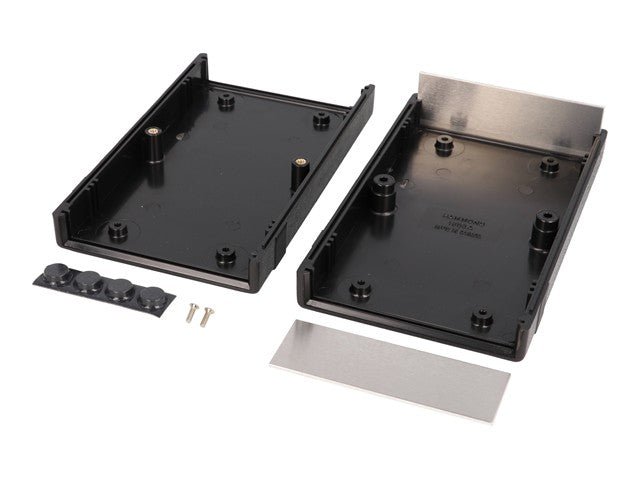

  • Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
  • Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
  • Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
  • Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H 6.1 in x 3.6 in x 1.4 in
(155 mm x 91 mm x 36 mm)
Shipping Weight 0.36 lbs (0.16 kg)
Packaging Type shrink wrap
Material ABS Plastic
Color Black
Flame Rating UL94 V-0
IP Rating IP54
Product Category Enclosures
Type Instrument Case
Max. P.C. Board Length (mm) 80.67
Max. P.C. Board Width (mm) 144.6

Downloads

Additional Information

Device Enclosure
Type Flame Retardent | ABS Plastic | Instrument
