142M1D20005 - Actuator/Sensor Cable -

142M1D20005 - Actuator/Sensor Cable -

142M1D20005 - Actuator/Sensor Cable -

142M1D20005

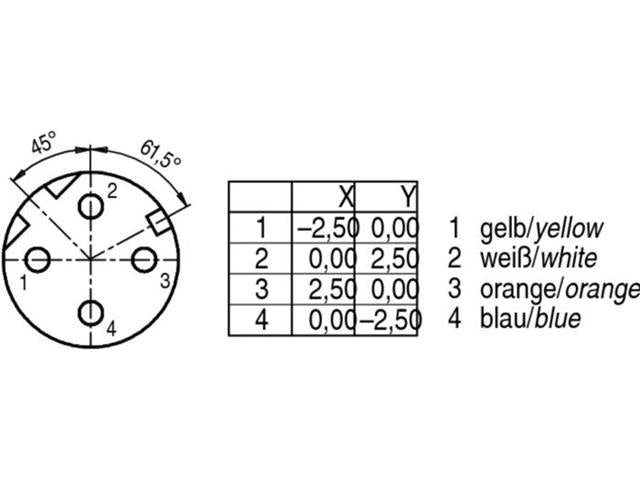

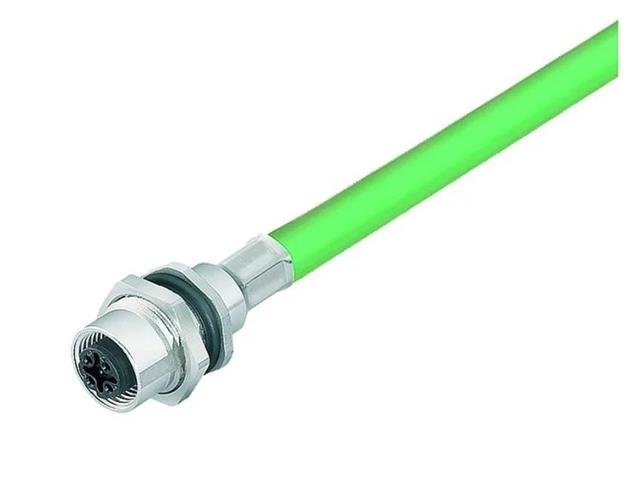

Circular Connector M12 D COD Female 4P Screw Lock M16 X 1,5 Rear Panel Entry Front Mount with 500mm Shield Profinet Cable IP67

SKU: 142M1D20005

BRAND: Metz Connect

In Stock
R 731.40_{(inc VAT)}
R 636.00_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Standard Sensor/Actuator Single-Ended Cordset

Specification

Series: 825/876 D-coding
Connector Locking System: M12
Termination: dip-solder
Wire Gauge (AWG): 22
Cable Length: 0.5 m
Degree of Protection: IP67
Upper Temperature °C: 60
Lower Temperature °C: -20
Rated Voltage: 250
Rated Impulse Voltage: 2500
Pollution Degree: 3
Overvoltage Category: II
Material Group: II
Rated Current: 4 A
Volume Resistivity: ≤ 3 mΩ
Material of Contact: CuSn (Bronze)
Contact Plating: Au (gold)
Material of Contact Body: PA
Housing Material: Messing, Zink Druckguss vernickelt
Cable Jacket: PUR green
Cable Color: Cable green
Insulation Single Lead: Polyolefin
Single Lead Structure: 7x0,34 (AWG22)
Cable Sheath: 6.7
Conductor Resistance: 55Ω/Km
Movable Cable Range Movable To (Celcisus): 60
Fixed Cable Range To (Celcius): 80
Bending Radius Cable Fixed: min. 5xd
Bending Radius Cable Movable: min. 15xd
Bending Cycles: (bei 10 x D) 2 Mio.
Permitted Acceleration: 2
Travelling Distance (Horizontal): (bei 5 m/) 5 m
Travelling Distance (Vertical): (bei 5 m/) 5 m
Travel Speed: Bei 5 m horizontalem Weg bis 200 m/min.
UL Style 1: AWM20236
Cable Diameter: 6.7

Downloads

Datasheet - 142M1D20005
