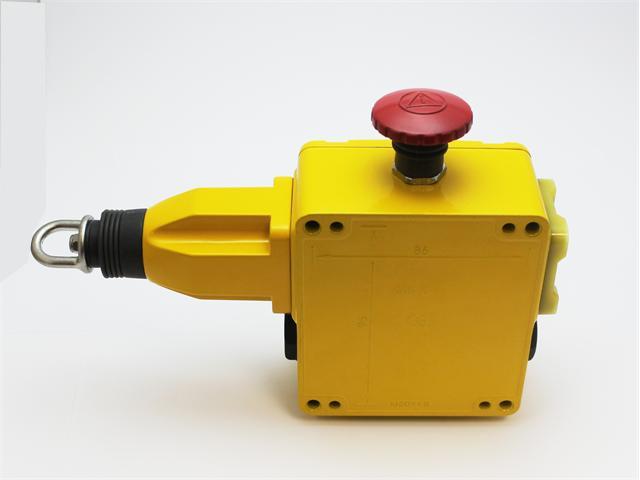

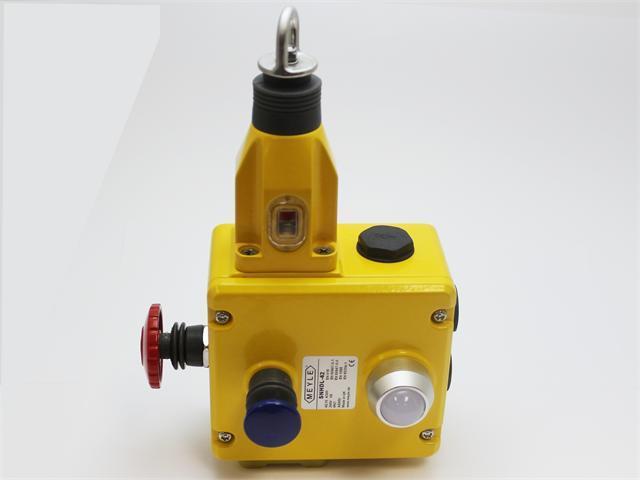

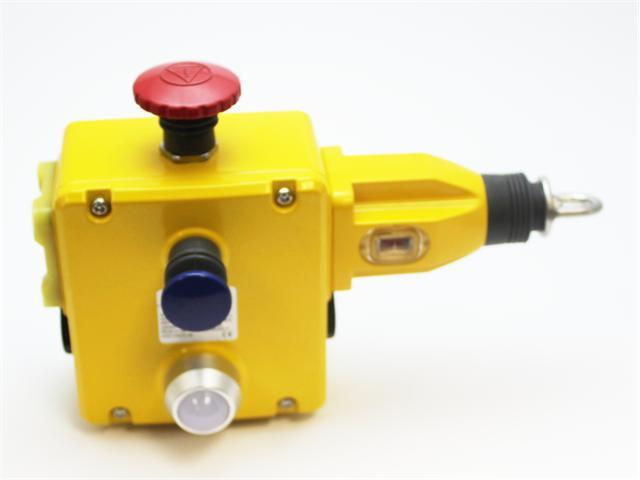

141005-AS
Pull Rope Switch Left - Heavy Duty - 4N/O, 2N/C with 24V Red/Green LED Indicator and E Stop Switch. Max Rope Length 125m

SKU: 141005-AS

BRAND: Meyle


Or split into 4x interest-free
payments of R822.89 Learn more

Pull Rope Switch Left - Heavy Duty

IDEM’s GLHL is a robust die-cast Heavy Duty Safety Rope Pull Switch which is designed to protect long conveyor lengths where protection is required up to 125m (using 2 switches) or up to 100m where just one switch is required.

The die-cast housings have been manufactured to provide a robustness that can survive indoor and outdoor use.

A high visibility bi-colour LED ensures that switch status can be easily viewed from a distance. They have 4NC 2NO contacts that ensure flexibility with all modern control applications and are available with optional Explosion Proof contact blocks.

  • Safety Classification and Reliability Data:
  • Mechanical Reliability B10d : 1.5 x 106 operations at 100mA load
  • ISO13849-1 : Up to PLe depending upon system architecture
  • EN62061 : Up to SIL3 depending upon system architecture
  • Safety Data – Annual Usage : 8 cycles per hour/24 hours per day/365 days
  • PFHd : <1.0 x 10-7
  • Proof Test Interval (Life) : 21 years
  • MTTFd : 214 years
  • Enclosure/Cover Material : Die-Cast (painted yellow)
  • IP Rating : IP67 (NEMA 6)
  • Rope Span : 125m
  • Rope Tension Device : IDEM Tensioner/Gripper (quick fixing)
  • Rope Type : 4.00mm outside dia. Steel inner - PVC sheath
  • Mounting : 4 x M5
  • Mounting Position : Any
  • Conduit Entries : 4 x M20 or 4 x 1/2” NPT (by Sales Number)
  • Tongue Settings
    • Mounting M5 4.0Nm
    • Lid T20 Torx M4 1.5Nm
    • Terminals 1.0Nm
  • Ambient Temperature : -25C +80C
  • Vibration Resistance : 10-500Hz 0.35mm
  • Shock Resistance : 11ms 15g
  • Tension Force (typical mid setting) : 130N
  • Typical Operating Force (Rope pulled) : <125N <300mm deflection
  • Weight : 1030g approx.
  • Contact Type :
    • EN60947-5-1 double break type Zb
    • Snap Action up to 4NC (positive break)
    • 2NO (Auxiliary)
  • Contact Material : Silver
  • Termination : Clamp up to 2.5mm2 conductors
  • Rating : Utilisation category AC15 A300
  • Operational Rating : 240V 3A
  • Thermal Current (lth) : 10A
  • Rated Insulation Voltage (U) : 500V
  • Withstand Voltage (Uimp) : 2500V
  • Short Circuit Overload Protection : Fuse externally 10A(FF)
Device Switch
Type Pull Rope | Left | Heavy Duty | 4N/O | 2N/C
Highlights with 24V Red/Grn LED Indicator and E Stop Switch. Max Rope Length 125M
