130E405032PE
Profinet Pro Industrial RJ45 Connector Fully Shielded CAT5 2 Pair Class D IDC Termination for Solid/Stranded Wire 26 - 22AWG 180 Degree Cable Entry- 10,5mm MAX OD (1132030000)

Name: 130E405032PE - Communica [Part No: 130E405032PE]
Brand: Profinet
SKU: 130E405032PE
Price: 396.70 ZAR
Availability: InStock

SKU: 130E405032PE

BRAND: Profinet

In Stock
R 456.21_{(inc VAT)}
R 396.70_{(ex VAT)}

Or split into 4x interest-free
payments of R99.17 Learn more

Collections: Connectors

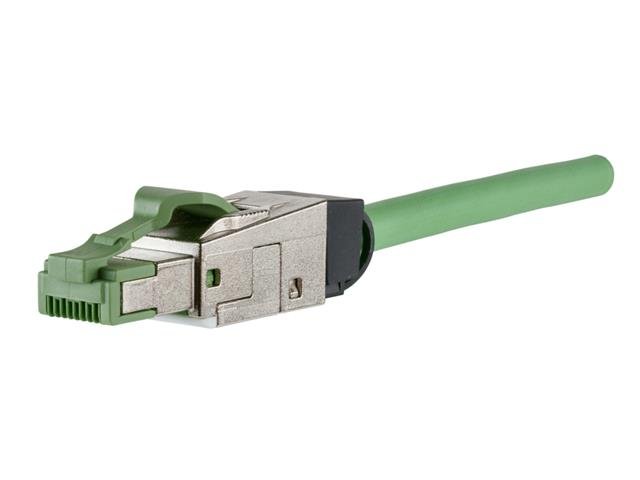

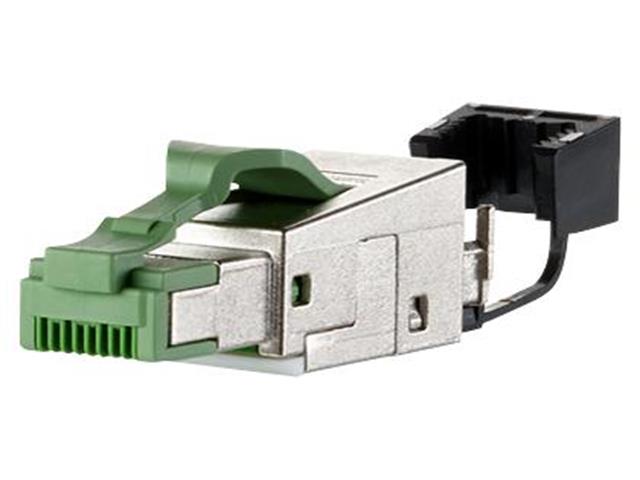

Pro Industrial RJ45 Connector

Cat.5 class D RJ45 plug, 2 pairs, to be assembled in the field
Fully shielded and multi-port capable
Straight (180°) cable feed
Easy assembly - connection without special tools
Wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
Wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
Transmission characteristics Cat.5 per ISO/IEC 11801 Ed.2.2:2011-06
Compliance with class D to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
100 MBit suitable according to IEEE 802.3
Suitable for Remote Powering (PoE and PoE plus) and HDBaseT
Degree of protection IP20
For cable jacket diameter from 5.5 to 10.5 mm
Zinc die-cast housing for industrial use consists of only 2 parts
Strain relief by latching clip directly on the stuffer cap
Protected locking hook
Reconnectable

Device	Connector
Type	RJ45 \| Fully Shielded \| CAT5 \| 2 Pair Class D
