101-00211A
Procentec T1 Terminator for PROFIBUS segments based on RS 485. Enables you to switch off or remove the last devices on a segment without disturbing the Bus Communication.

Name: 101-00211A - Communica [Part No: 101-00211A]
Brand: Procentec
SKU: 101-00211A
Price: 5692.50 ZAR
Availability: OutOfStock

SKU: 101-00211A

BRAND: Procentec

Sold Out
R 6,546.38_{(inc VAT)}
R 5,692.50_{(ex VAT)}

Or split into 4x interest-free
payments of R1423.12 Learn more

Collections: Electromechanical

Type: Industrial Automation

Category: PLC & DCS

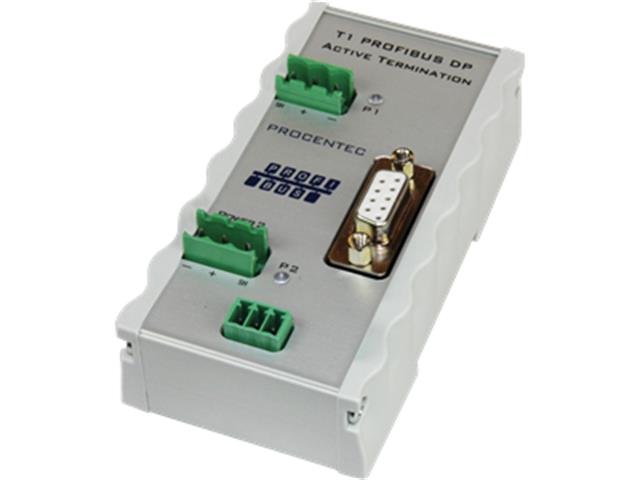

Procentec T1 Terminator

Overview

The T1 Terminator provides active termination for PROFIBUS segments which are based on RS 485. This component enables you to switch off or remove the last devices on a segment without disturbing the bus communication. This way you reduce the risk of faults and thus potential downtime. The redundant power supply of the T1 increases reliability even more. The on-board DB9 connector can be used as hookup point for diagnostic tools

Specifications

PROFIBUS

390 / 220 / 390 Ohm
Supports all PROFIBUS RS 485 protocols
9.6 kbps..12 Mbps
Removable screw terminals and a DB9 connector
Connection speed: 9.6 kbps .. 12 Mbps (automatic detection)
DB9 monitoring port

Channels

1 galvanicly isolated channel

Power supply

Redundant power supply
Operating Voltage: 19..28 VDC
Current consumption: < 60 mA
Diagnostic LEDs to indicate the status of the power supply

Dimensions and weight

Dimensions (LxWxH): 106 x 55 x 33 mm (without plugs)
Weight: 125 g

Additional Information

Device	Terminator
Type	Procentec \| T1
