XY-IP CAM4007MM 3.0MP

SKU: XY-IP CAM4007MM 3.0MP

BRAND: Xytron

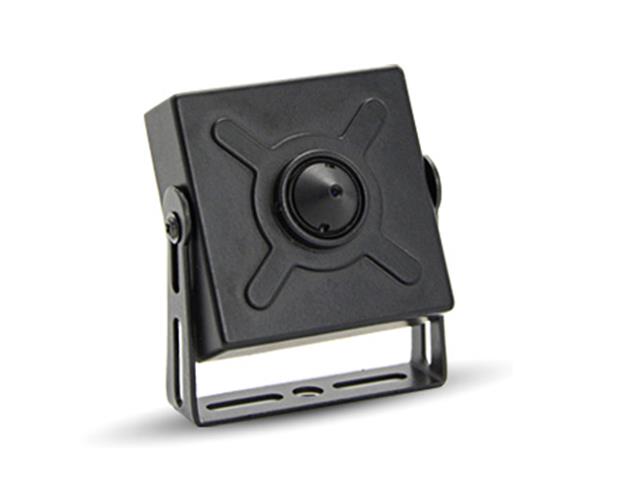

Xytron Mini IP Camera High Definition 3.0MP

Mini IP Camera High Definition 3.0MP

Specifications

Camera

    • Image sensor : 3.0M 1/2.7"SC4239P Black light illumination CMOS sensor
    • Min.illumination : Color 0.01Lux @(F1.2,AGC ON),0 LUX with IR, black/white 0.001 Lux @ (F1.2,AGC ON),0 LUX with IR
    • Shutter : 1/50(1/60)s - 1/10,000 s
    • day/night : Support IR-CUT
    • Noise Reduction : Support 2D/3D
    • WDR : Digital
    • LED : N/A
    • Distance : N/A
    • Lens : 3.7mm 3 Megapixel pinhole lens

Video & Audio compression

    • Video : H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream, AVI;
    • Bite rate : 0.1M~10Mpbs variable;1~30f/s variable
    • Audio : G.711,audio&video synchronization
    • Audio interface : 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;0ch, output(expandable to 1ch)


    • Max.image resolution : 3MP 2304*1296@20fps
    • Image Output : Main stream: 2304*1296@20fps,1920*1080@25fps; sub-stream: 800*448@25fps,704*576@25fps, 640*360@25fps
    • Image setting : Saturation, brightness and contrast are adjustable through IE browser or client

Network

    • Intelligence : Supporting human detection and tripping line detection, and supports intelligent, functions such as customized face detection, number statistics, etc.
    • Net interface : 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
    • Reliability : Comprehensive lightning protection, 7 * 24 hours-10°C~65°C high temperature stable and reliable testing
    • Onvif : Yes

Others

    • Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end
    • Storage/playback/download, and center reminder and image linkage,support JPEG
    • Capture;united remote client monitoring sofaware、MYEYE;perfect SDK
    • Mobile Monitoring : Support multiple mobile monitoring(iOS,Android)

General

  • Operating condition : humidity less than 90%( non-condensing)
  • Power supply : DC12V ±10%
  • Weight : 150g

Downloads

Additional Information

Device Camera
Type Mini | IP | High Definition | 3.0MP
