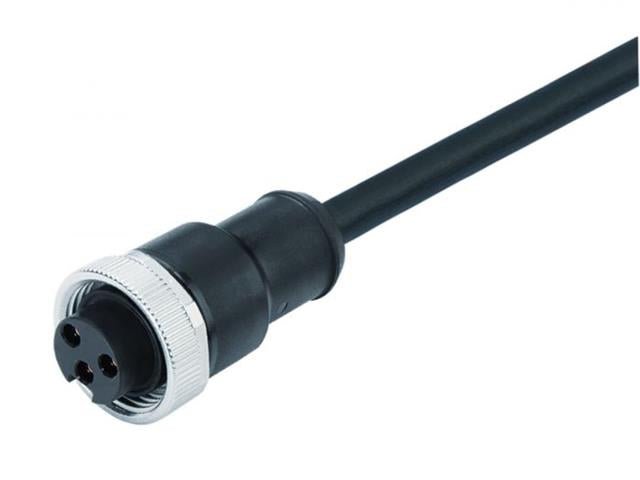

77-1430-0000-50005-0500 - Actuator/Sensor Cable -

77-1430-0000-50005-0500
Cordset - Power 7/8" Female Straight. 5 Pole UL Single End - 5m PUR Black Cable 5 x 1,5mm2. Conductors 8mm OD. IP68 (0905 204 301/5M)

SKU: 77-1430-0000-50005-0500

BRAND: Binder


In Stock
R 883.20 (inc VAT)
R 768.00 (ex VAT)

Or split into 4x interest-free
payments of R192 Learn more

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: Power Cordset - Single End

Power 7/8' Female Cable Connector

  • Series: 870
  • Connector Locking System: bolted
  • Wire Gauge (mm): 1,5 mm²
  • Wire Gauge (AWG): (16)
  • Cable Length: 5 m
  • Degree of Protection: IP68
  • Mechanical Operation: > 100 Mating cycles
  • Upper Temperature ℃: 85
  • Lower Temperature ℃ : -25
  • Rated Voltage: 300
  • Rated Impulse Voltage: 4000
  • Pollution Degree: 3
  • Overvoltage Category: II
  • Material Group: II
  • Rated Current: 9 A
  • Volume Resistivity: ≤ 3 mΩ
  • Material of Contact: CuZn (Messing)
  • Contact Plating: Au (gold)
  • Material of Contact Body: PUR
  • Housing Material: PUR
  • Approval 1: UL
  • Cable Jacket: PUR
  • Insulation Single Lead: TPM
  • Single Lead Structure: 82 x 0,15
  • Cable Sheath: 8.7
  • Movable Cable Range Movable From (Celsius): -20
  • Movable Cable Range Movable To (Celcisus): 80
  • Fixed Cable Range From (Celcius): -50
  • Fixed Cable Range To (Celcius): 80
  • Bending Radius Cable Movable: 7,5 x d
  • Bending Cycles: 5 Mio.
  • Permitted Acceleration: 5 m/s²
  • Travel Speed: Bei 5 m horizontalem Weg bis 200 m/min.
  • Cable Diameter: 8
Device Cable Connector
Type Power | 7/8" | Female
