Multifunction Wall Scanner, Ferrous Metals:120mm, Non-Ferrous Metals (Copper):100mm, AC Wire:50mm, Single Strand Copper Wire:40mm (≥4mm²), 3 Level Sensitivity Adjustment, Battery Capacity:3.7V 300mAH, 138x68x22mm, 122g

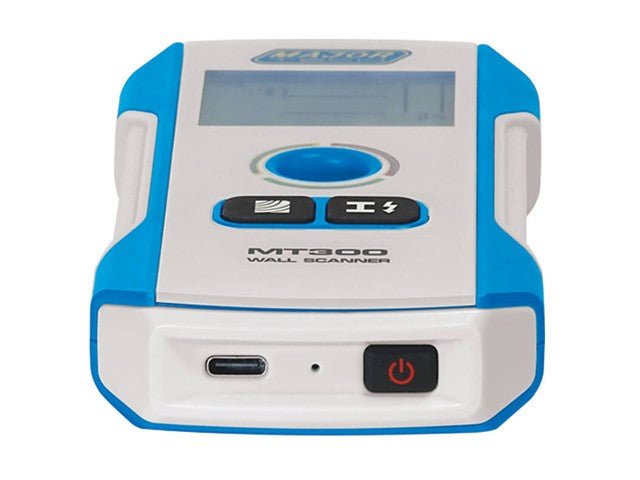

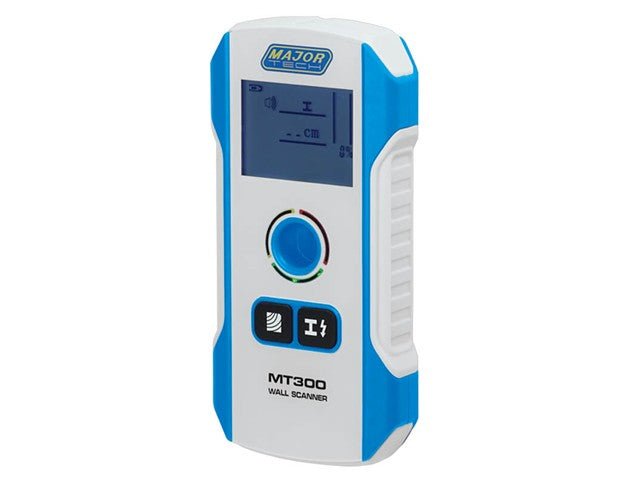

Multifunction Wall Scanner
Features
- Equipped to detect metal, wires, pipes, wood, studs, and live AC cables
- Newly designed positioning hole, accurately and swiftly marks edges and centres of metal, streamlining your projects
- 3-level sensitivity adjustment, this scanner elevates measurement accuracy to ensure you find your target with pinpoint precision
- It illuminates yellow or red based on proximity to the target, turning green when no target is present
- Audible beep guides user, with continuous alarms leading the user to the target’s centre
- The high-performance anti-jamming chip guarantees accuracy
- Depth range:
- Metal: 120mm,
- Non-ferrous metal (copper): 100mm,
- AC line: 50mm,
- Copper wire (single strand): 40mm,
- Wood: 2mm,
- Depth Mode:38mm
- Exact Mode: 20mm
- Positioning hole to accurately & swiftly marks edges & centers
- Backlight LCD Display

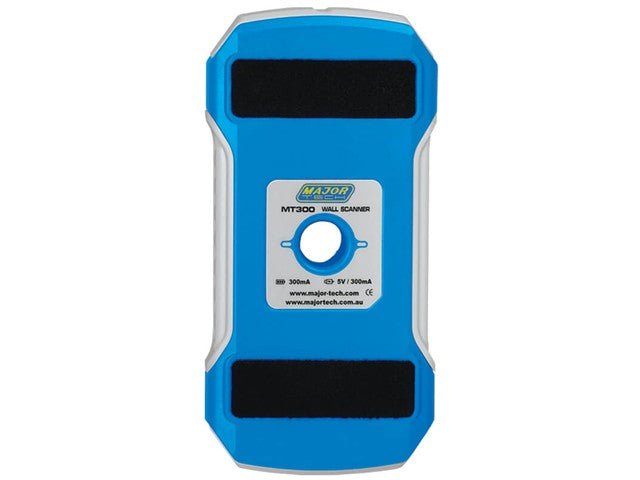

- Velcro Strips eliminates damage to surfaces
Specifications
| DC Voltage |
1000V
|
| DC Voltage resolution |
1V
|
| DC Voltage accuracy |
±(0.8% +3)
|
| AC Voltage |
750V
|
| AC Voltage resolution |
1V
|
| AC voltage accuracy |
±(1.2% +10)
|
| Resistance |
200kΩ
|
| Resistance resolution |
0.1kΩ
|
| Resistance accuracy |
±(1.0% +2)
|
| Earth resistance |
20/200/2000Ω
|
| Earth resistance resolution |
0.01Ω
|
| Earth resistance accuracy |
±(2%+10)
|
| Earth voltage |
200V
|
| Earth voltage resolution |
0.1V
|
| Earth voltage accuracy |
±(3%+3)
|
| Frequency |
40 to 400Hz
|
| Display |
LCD Display
|
| Back Light |
Yes
|
| Enclosure |
Overmoulded case
|
| Low battery indication |
Yes
|
| Power source |
6 x AA
|
| Weight |
700g
|
| Dimensions |
200 x 92 x 50mm
|
Downloads
Additional Information
| Device |
Scanner |
| Type |
Multifunction | Wall |
