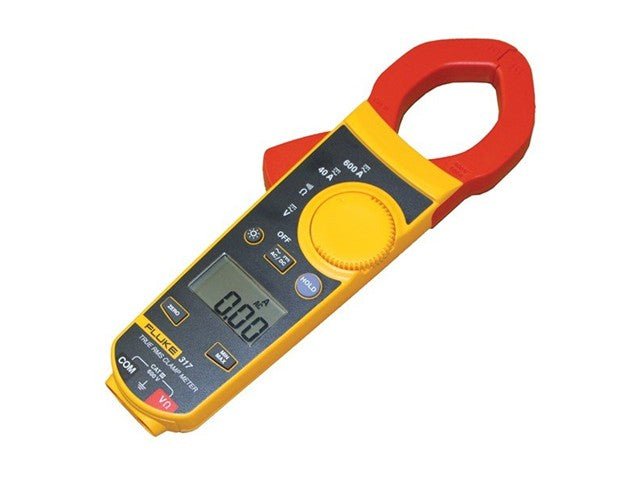

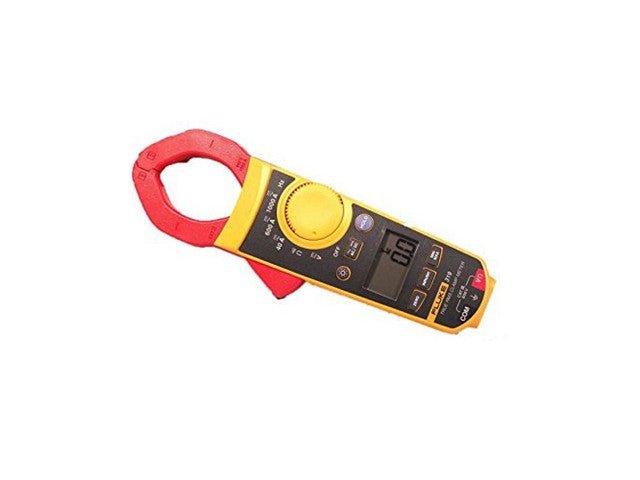

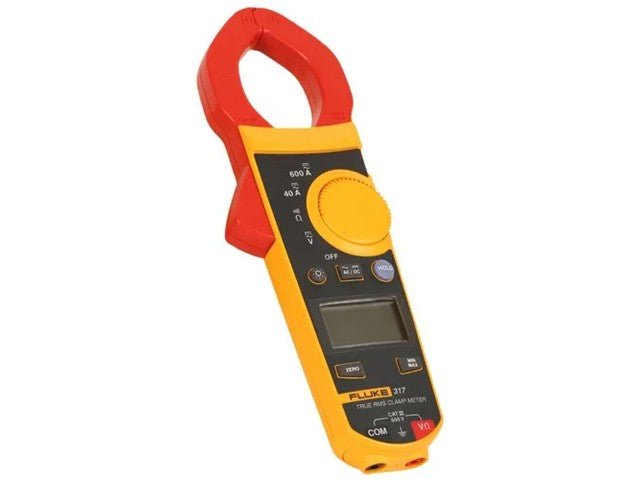

The new Fluke 317 clamp meter is designed
based on detailed research into the specific
requirements of electrical engineers. The small
clamp meter head and lightweight, compact
body make it ideal for use in confined spaces.
The 40A range low current measurement (0.01A
resolution) design is unique and allows users to
accurately measure small currents. At the same
time, the clamp meter also has functions such
as accurate, True RMS measurements, maxi-
mum/minimum values, zeroing, background
light display, display protection and is a powerful
tool in carrying out daily maintenance and instal-
lations.
- The unique new features* of the 40 milli-amps measurement High-precision current measurement--0.01A
- High-resolution, 1.6% high-precision measurements. (many engineers take small measurements more often than large current measurements)
- 6000 count display
- 4000 Ω resistance measurement
- Continuity testing ≤ 30 Ω
- Clamp opening: 37mm
- The new clamp head is narrow and the body is compact and portable, making it ideal for use in confined spaces
- Alternating/ current (AC)/direct current (DC) testing
- Min/Max (minimum value / maximum value) feature on both current and voltage modes
- New zeroing feature* - sets the display to zero to perform (DC) testing
- True RMS
- Large back light screen, convenient viewing
- Screen ‘Hold’ function to hold measurement results on the screen
- Automatic off function prolongs battery life and ensures the instrument’s continued availability.
