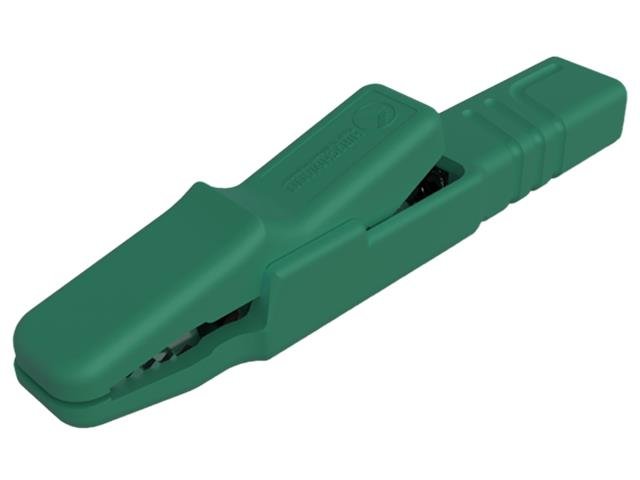

Insulated, high strength alligator clip. Clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped. 4 mm diameter socket connection and screw connection up to 1.5 mm².
- Connection : unsprung socket 4 mm, screw terminal
- Rated voltage(1) : 30 VAC / 60 VDC
- Measurement cat. acc. to IEC 61010 : O (3)
- Rated current(1) (consider derating curve) : 25 A
- Material socket : brass, nickel plated
- Housing material : PP
- Temperature range acc. To IEC61010(2) : -25 °C to +80 °C
- Inflammability class acc. to UL 94 (only valid for basic material of housing) HB
- Clamping range : 9,5 mm
| Device |
Crocodile Clip |
| Type |
4mm | Brass | Socket |
