MAJ MT250 - Data Acquisition & Logging -

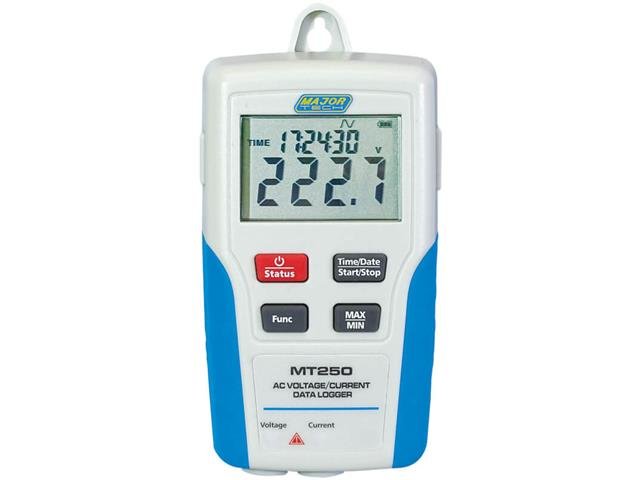

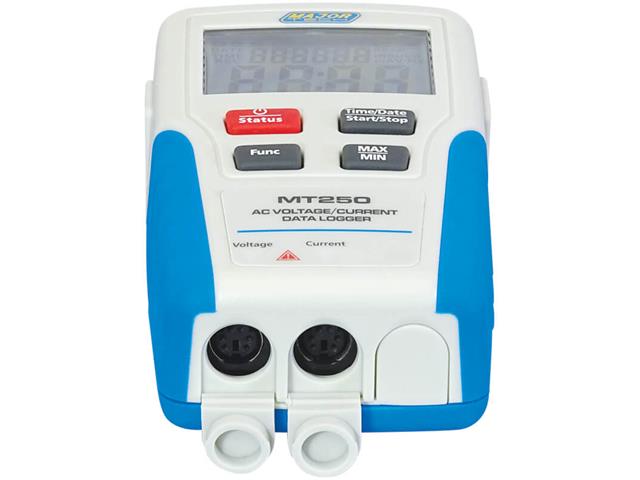

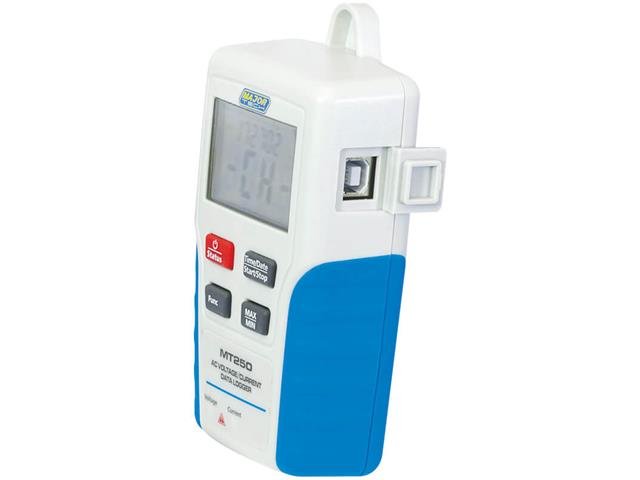

MAJ MT250
AC Voltage & Current Data Logger including Soft Vinyl Case

Name: MAJ MT250 - Communica [Part No: MAJ MT250]
Brand: Major Tech
SKU: MAJ MT250
Price: 4425 ZAR
Availability: InStock

SKU: MAJ MT250

BRAND: Major Tech

In Stock
R 5,088.75_{(inc VAT)}
R 4,425.00_{(ex VAT)}

Or split into 4x interest-free
payments of R1106.25 Learn more

Collections: Test & Measurement, Test & Measurement - Data Acquisition & Logging

Type: Data Acquisition & Logging

Category: Datalogger

Voltage and Current Logger

Overview

The MT250 is a True RMS Voltage and Current Logger designed for easy of use in recording AC Voltage and Current. The Logger can be programmed simply via USB interface from your PC. 1 second rapid sampling rate variable to 24 hours. LCD display of Voltage or Current for quick reference checks.

Features

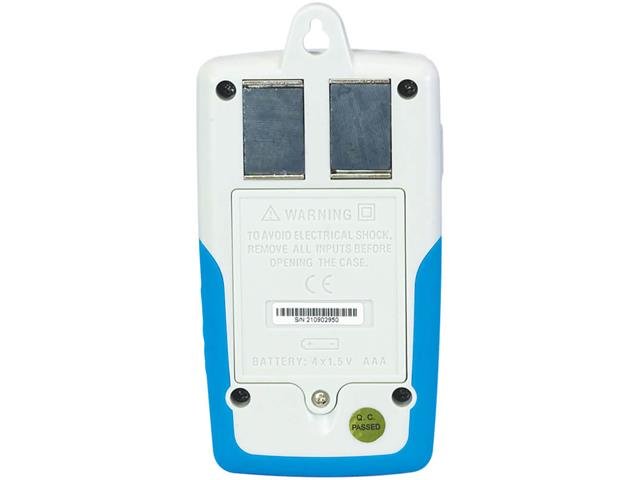

Magnetic back plate for easy of attachment to metal surfaces
Each channel can record up to 50022 data
Date and Time Stamp
Graphical and Printed Text information
Battery or AC power supply

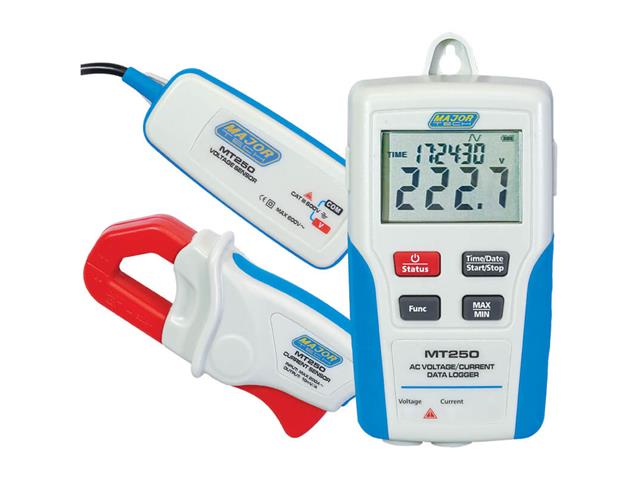

Accessories:

Carrying case
AAA Batteries
Test leads
Instruction manual
USB cable

Specifications

Weight	248g
Internal Memory	100,044 data points 1Ch, 50,022 per channel
Voltage resolution	0.1V
Voltage (RMS)	6-600.0V
Sampling Speed	1second to 24Hour
Safety Specs	IEC 61010-1 Cat III 300V
Power source DC	4 x R6P
Power source AC	External DC9V (specail AC Adapter)
PC Communication	USB
Measurements and Parameters	Voltage, Current.
Included Accessories	USB Cable, Voltage lead, Current Clamp, Manaul, 4 x R6P Batteries
Dimensions	114 x 63 x 34mm
Frequency Range	40-1KHz
Display update period	Real time
Display Range	LCD Display
Current resolution	0.1A
Current (RMS)	2-200A
Crest Factor	2.5 or less:RMS (sine) 2% 1%f.s. 95% or less of each range
Allowable Input	50/60Hz, 10% or more of the range Ch1
Enclosure	Over Moulded casing
Wiring connections	2 Channe

Downloads

Additional Information

Device	Voltage Logger \| Current Logger
Type	Digital
