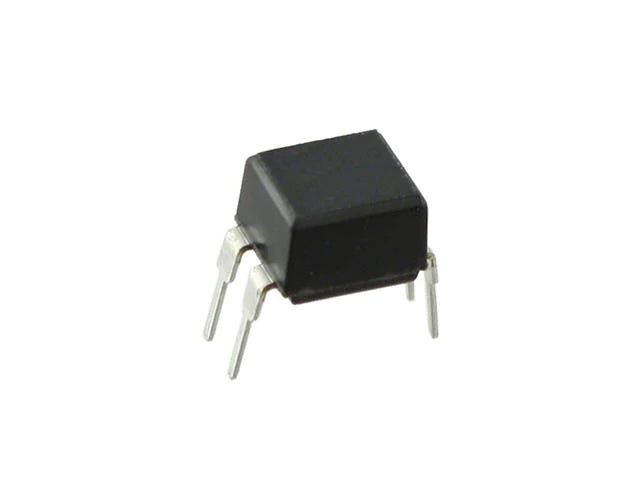

IRFD9024

Name: IRFD9024 - Communica [Part No: IRFD9024]
Brand: Vishay
SKU: IRFD9024
Price: 10.25 ZAR
Availability: InStock

SKU: IRFD9024

BRAND: Vishay

In Stock
R 11.79_{(inc VAT)}
R 10.25_{(ex VAT)}

Category: MOSFET

SIP MOS 60V-1,6A 0,28R 1,3W HD-1

Specifications

Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 960mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	4-HVMDIP

CatGroup

Field Effect Transistor
