Video and Audio

• IP Video Input : 8-ch
• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
• VGA Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 80 Mbps
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding Format : H.265+,H.265,H.264+,H.264
• Decoding Capability : 4-ch@1080p
• Synchronous playback : 8-ch
• Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

• Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

• Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 75W

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 8TB capacity for each disk
• USB Interface : 2 × USB 2.0

General

• Power Supply : 48 VDC, 1.88 A
• Consumption : ≤ 10 W (without enabling PoE)
• Working Temperature : -10 to +55º C (+14 to +131º F)
• Working Humidity : 10 to 90 %
• Chassis : 1U chassis
• Dimension (W × D × H) : 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
• Weight : ≤ 1 kg (2.2 lb)

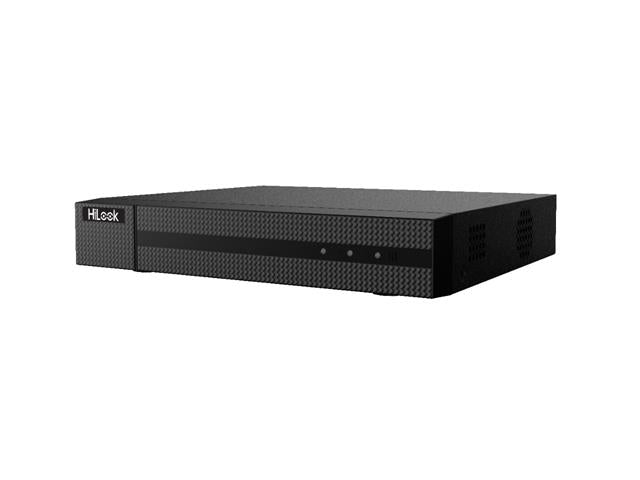

1. Datasheet - HLK NVR-108MH-C/8P
