Motion Detection 2.0

• Human/Vehicle Analysis : 4-ch

Video and Audio

• IP Video Input : 8-ch
• Incoming Bandwidth : 80 Mbps
• Outgoing Bandwidth : 80 Mbps
• HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode : HDMI/VGA simultaneous output
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format : H.265+,H.265,H.264+,H.264
• Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding Capability : 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps);5 x1080P
• Synchronous playback : 8-ch

Network

• Remote Connection : 32
• Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface : 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 8 TB capacity for each disk
• USB Interface : 2 × USB 2.0

General

• Power Supply : 12 VDC, 1.5 A
• Consumption : ≤ 10 W (without HDD)
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Chassis : 1U
• Dimension (W × D × H) : 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
• Weight : ≤ 1 kg (without HDD, 2.2 lb.)

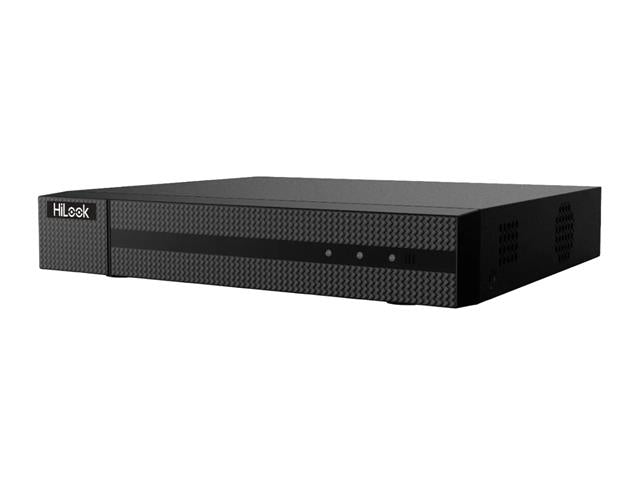

1. Datasheet - NVR-108MH-C
