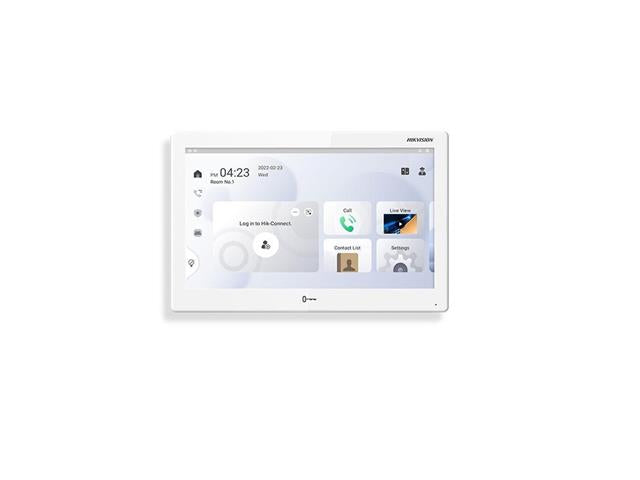

• 10.1-inch colorful touch screen with 1024 × 600 resolution
• Built-in Android System
• Supports Android APP installation
• Support for three-party software integration
• Built-in Hik-Connect APP
• For all-in-one management of Hikvision’s devices on tablet

System Parameters

• Operation System : Android 10.1
• ROM : 8 GB
• RAM : 2 GB
• Processor : Embeded high performance processor

Display Parameters

• Screen Size : 10.1-inch
• Operation Method : Capacitive touch screen
• Type : Colorful IPS
• Resolution : 1024 × 600

Audio Parameters

• Audio Input : 1 built-in omnidirectional microphone
• Audio Compression Standard : G.711U, G.711A
• Audio Output : 1 built-in loudspeaker
• Audio Compression Bitrate : 64 Kbps
• Audio Quality : Noise suppression and echo cancellation
• Volume Adjustment : Adjustable

Capacity

• Message Capacity : 200 captured pictures, 200 alarm records
• Notice Capacity : 200
• Linked Indoor Extensions Capacity : 16
• Linked Network Camera Capacity : 16
• Linked Doorphone Capacity : 17

Network Parameters

• Network Protocol : TCP/IP, SIP, RTSP
• Wi-Fi : 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n

Device Interfaces

• Alarm Input : 8
• Network Interface : 1 RJ-45 10/100 Mbps self-adaptive
• RS-485 : 1 RS-485 (Half duplex)
• TF Card : Support TF card, up to 128 G
• Alarm Output : 1
• Lock Control : 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General

• InstallationSurface mounting
• Weight
  • Net weight: 875 g
  • Gross weight: 1060 g
• Working Temperature : -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity : 10% to 90% (no-condensing)
• Dimension (W × H × D) : 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Power Supply : 12 VDC, 1 A, IEEE802.3af, standard PoE
• Application Environment : Indoor
• Power Consumption : ≤ 12 W
• Language : English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian
