Thermal Module

• Image Sensor : Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution : 256 × 192
• Pixel Pitch : 12 μm
• Spectral Range : 8 μm to 14 μm
• NETD : < 40 mK (25°C, F1.0)
• Focal Length : 9.7 mm
• IFOV : 1.24 mrad
• Field Of View : 18.0°(H) x13.5°(V)
• Min. Focusing Distance : 1.5 m
• Aperture : F1.0
• Digital Zoom : ×2, ×4

Optical Module

• Image Sensor : 1/2.7" Progressive Scan CMOS
• Resolution : 2688 × 1520
• Min. Illumination : 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Focal Length8.0 mm
• Field Of View39.4°(H) x22.1°(V)
• Aperture (Range)F1.6
• WDR120 dB

Image Effect

• Target Coloration : Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance : Up to 30 m
• IR Intensity And Angle : Automatically adjusted

Audible And Visual Alarm

• White Light Range : Up to 30 m
• Visual Alarm : Yes. White light alarm with adjustable flashing frequencies
• Audio Alarm
  • Yes, for two types of audible alarm (VCA and Temperature Exception)
  • 2 preset voice alerts (one for each)
  • 6 importable user-defined voice alerts (6 options shared in the two types)
• Smart Function
• VCA : 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range-20°C to 150°C (-4°F to 302°F)
• Temperature Accuracy± 8°C (± 14.4°F)

Video And Audio

• Main Stream
  • Thermal : 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
  • Optical:
    • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • Thermal: : 25 fps (704 × 576, 640 × 512, 320 × 240)
  • Optical:
    • 50 Hz: 25 fps (704 × 576, 352 × 288)
    • 60 Hz: 30 fps (704 × 480, 352 × 240)
• Video Compression
  • Main Stream: H.265/H.264
  • Sub-Stream: H.265/H.264/MJPEG
• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

• Protocols : IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
• Network Storage : MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• API : ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
• Simultaneous Live View : Up to 20 channels
• User/Host Level : Up to 32 users, 3 levels: Administrator, Operator, User
• Security : User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• Client : iMS-4200, Hik-Connect
• Web Browser
• Live view (plug-in allowed) : Internet Explorer 11
• Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
• Local service : Chrome 57.0 +, Firefox 52.0 +

Interface

• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input
  • 1, 3.5 mm Mic in/Line in interface
  • Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface
  • 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
  • 1, RS-485 interface (half duplex)
• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

• Web Client
• Language : 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply
  • 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
  • PoE (802.3af, class 3)
• Power Consumption
  • 24 VAC ± 25%: 0.8 A, Max.8.5 W
  • 12 VDC ± 25%: 0.7 A, Max.8.5 W
• PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
• Working Temperature/Humidity
  • Temperature: -40°C to 65°C (-40°F to 149°F)
  • Humidity: 95% or less
• Protection Level : IP67 Standard, TVS 6000V lightning protection, surge protection, voltage transient protection
• Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
• Weight : 1550 g (3.41 lb)

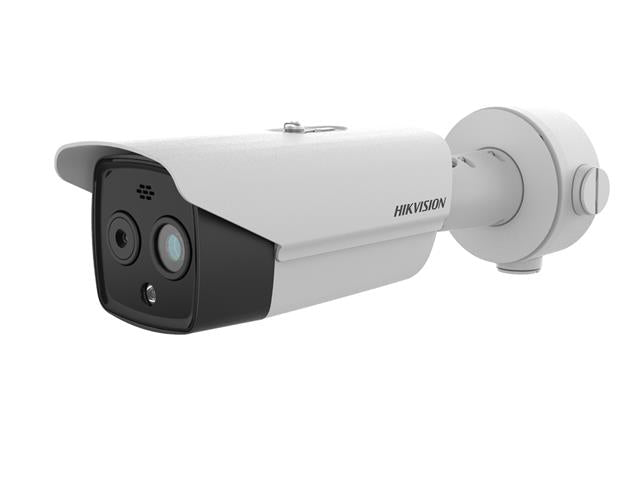

1. Datasheet - HKV DS-2TD2628-10/QA
