• Max. 30fps@1080P
• HD and SD output switchable
• 3.6mm fixed lens
• Max. IR length 20m, Smart IR
• IP67, DC12V

Camera

• Image Sensor : 1/2.7" CMOS
• Effective Pixels : 1920(H)×1080(V), 2MP
• Scanning System : Progressive
• Electronic Shutter
• Speed PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
• S/N Ratio : More than 65dB
• IR Distance : Up to 20m (66feet)
• IR On/Off Control : Auto / Manual

Lens

• Lens Type : Fixed lens / Fixed iris
• Mount Type : Board-in
• Focal Length : 3.6mm
• Max Aperture : F1.85
• Angle of View : H: 93° (103°, 54.7°)
• Focus Control : N/A
• Close Focus Distance : 800mm (500mm, 2000mm) 31.50'' (19.69'', 78.74'')
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual

Eelectrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max. 2.7W (12V DC, IR on)

Environmental

• Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
• Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection & Vandal Resistance : IP67

Construction

• Casing : Plastic
• Dimensions : 70mm×70mm×149mm (2.76"×2.76"×5.87")
• Net Weight : 0.14kg (0.31lb)
• Gross Weight : 0.17kg (0.37lb)

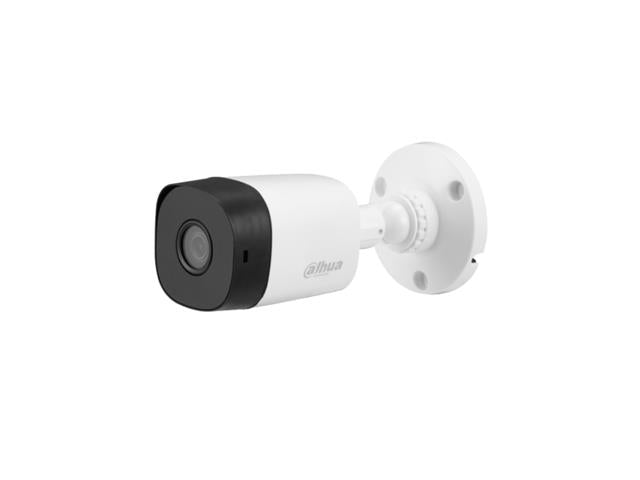

1. Datasheet - DHA HAC-B1A21P 3.6MM
